Cut-off Colored Glass Filters
The glass is named based on spectral characteristic of which is represented by the wavelength transmission limit.
Short Pass Color Glass Filters
Long Pass Color Glass filters
product orgin:
Chinashipping port:
Fuzhou Chinapayment:
T/T Payment, Western UnionCut-Off Colored Glass Filters

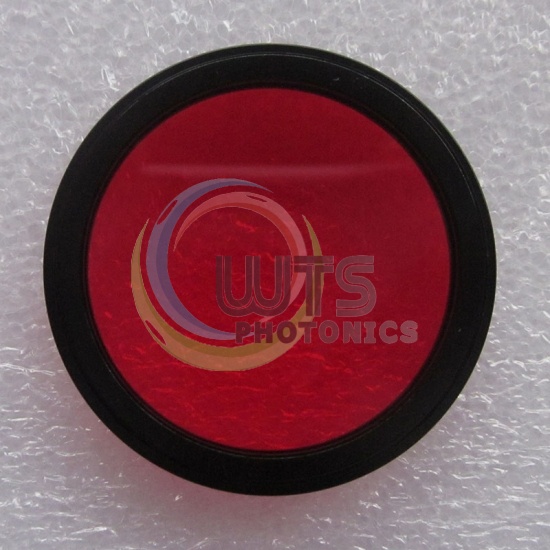

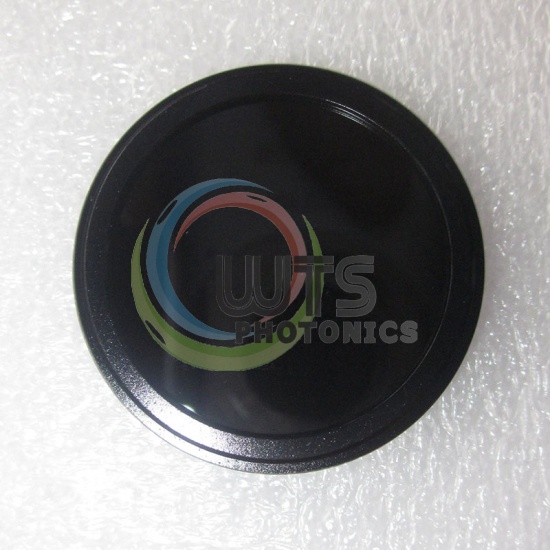

Cut-Off Colored Glass Filters is named based on spectral characteristic of which is represented by the wavelength transmission limit. For example, if the transmission limit of glass is 490nm,then it is named as JB490. It separated to Long Pass Color Glass filters and Short Pass Color Glass filters. There are five groups and 35 types glasses. The Following are the 35 Types Glasses
Their main application are as below:
1. Environmental displays
2. Optical metrological instruments
3. Laser protective windows
4. Machine vision devices
5. Optical detection instruments
6. Optical test instruments
7. Electro-optic displays
8. Medical optical
9. Infrared thermograph
WTS | SCHOTT | HOYA | WTS | SCHOTT | HOYA | WTS | SCHOTT | HOYA |
ZJB220 | UV-22 | JB470 | GG475 | Y-46 | HB670 | RG665 | ||
ZJB240 | WG230 | JB490 | GG495 | Y-48 | HB685 | R-68 | ||
ZJB260 | JB510 | GG515 | Y-50 | HB700 | RG695 | R-70 | ||
ZJB280 | WG280 | UV-28 | CB535 | GG530 | 0-54 | HB720 | RG715 | R-72 |
ZJB300 | WG295 | UV-30 | CB550 | GG550 | HWB760 | IR-76 | ||
ZJB320 | WG320 | UV-32 | CB565 | GG570 | 0-56 | HWB780 | RG780 | |
ZJB340 | WG345 | UV-34 | CB580 | GG590 | 0-58 | HWB800 | IR-80 | |
ZJB360 | WG360 | UV-36 | HB600 | R-60 | HWB830 | RG830 | IR-83 | |
ZJB380 | GG375 | L-38 | HB610 | RG610 | HWB850 | IR-85 | ||
JB400 | GG400 | L-40 | HB630 | RG630 | R-62 | HWB900 | ||
JB420 | GG420 | L-42 | HB640 | RG645 | R-64 | HWB930 | ||
JB450 | GG455 | Y-44 | HB650 | R-66 |
Specifications:
Material:
Color glass
Dimension Tolerance:
+0.0, -0.2mm
Thickness Tolerance:
+/-0.2mm
Surface quality:
80/50
Clear Aperture:
>85%
Flatness:
1 λ per 25mm@633nm
Parallelism:
<3'
Bevel:
<0.25mmx45°
Coating:
Upon requirement
Typical Sizes:
Size(mm)
Size(mm)
Φ5.0x1.0
Φ20.0x3.0
Φ10.0x2.0
Φ25.4x3.0
Φ12.7x2.0
Φ50.8x3.0
Φ15.0x3.0
Φ76.2x5.0
Selective Absorption Colored Glass Filters This part of the glasses can be divided into 14 kinds and 78 types based on the color and application in this catalogue.
Neutral Colored Glass Filters are named based on the average transmissivity characteristics in 400nm to 700nm wavelength with 2mm thick For example ZAB70 means 70%.
Double Convex Lenses, Bi-convex Lenses have two outward curved surfaces, a positive focal length and are useful for 1:1 imaging and in multi-element systems.These lenses are designed to have a focal length of f= (R1*R2)/((n-1)*(R2-R1)) 1. Supported by the Zemax Optical Design Package 2. Posistive Focal Length 3. Material upon requirement
Pyramid prisms has a base that is connected to a single vertex, not in the same plane as the base, by line segments from each vertex of the base shape.
Alpha-BBO Crystals is high temperature phase of BaB2O4 is an excellent birefringent crystal; it is characterized by large birefringent coefficient and wide transmission window from 189nm to 3500nm.
BBO Crystal is an efficient NLO crystal for the second, third and fourth harmonic generation of Nd:YAG lasers, and the best NLO crystal for the fifth harmonic generation at 213 nm.
