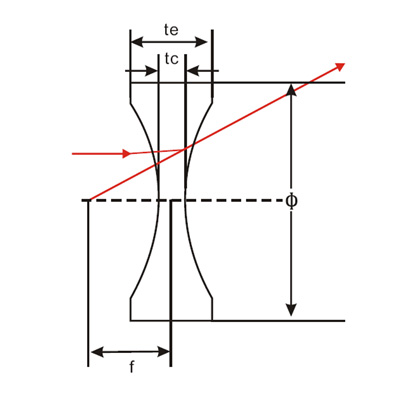

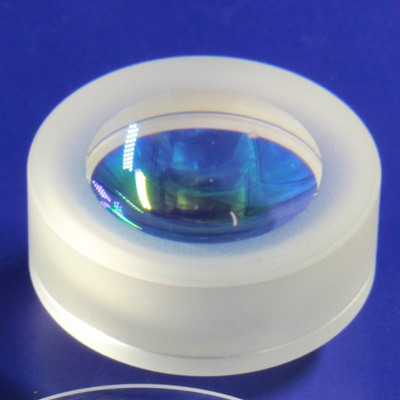

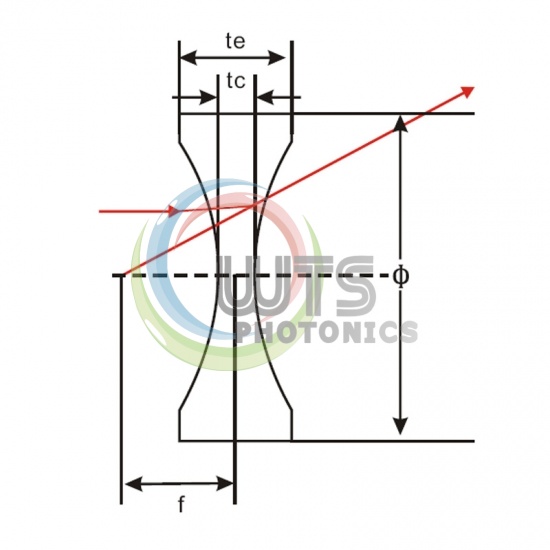

Double Concave Lenses, Bi-Concave Lenses is like the Plano-Concave lenses in that they are used to produce divergent light. The Bi-Concave is best used when the input beam is converging.
1. Supported by the Zemax Optical Design Package
2. Negative Focal Length
3. Material upon requirement
WTS offer customize Double Concave Lenses products.
|
Material: |
Optical glass, BK7, Fused Silica, Schott, OHARA, CaF2,Germanium etc. |
|
Dimension Tolerance: |
±0.1mm(Standard), ±0.01mm(High Precision) |
|
Center Thickness Tolerance: |
±0.1mm(Standard), ±0.02mm(High Precision) |
|
Paraxial Focal Length: |
±2% |
|
Surface quality: |
60/40(Standard), 20/10(High Precision) |
|
Clear Aperture: |
>85% |
|
Surface Figure: |
λ/2(Standard), λ/8(High Precision) @633nm |
|
Centration: |
3 arc minutes |
|
Bevel: |
<0.25mm×45° |
|
Coating: |
Upon requirement |
Note for
Spherical Lens:
One stop service for
Vision Optics-Laser
Optics-Medical
Optics-5G
Optical Communication-Military
Optics.
a. Other optical
glass materials from Schott, Ohara, Hoya or Chinese CDGM, UVFS from Heraeus,
Corning, Germanium, Silicon, ZnSe, ZnS, CaF2, Sapphire are also available upon
request .
b. Custom-made Spherical Lenses at any size from diameter 1.0 to
300mm are available upon request.
| Typical Sizes | ||||||
| ItemNo. | Diameter(mm) | f(mm) | R2=R2(mm) | Tc(mm) | Te(mm) | Fb(mm) |
| Material | N-BK7 | |||||
| BICV001 | 6 | -15 | 15.2 | 2.1 | 1.5 | 14.3 |
| BICV002 | 6 | -30 | 30.83 | 1.79 | 1.5 | 29.42 |
| BICV101 | 12.7 | -15 | 14.65 | 4.89 | 2 | 13.27 |
| BICV102 | 12.7 | -20 | 20.04 | 4.07 | 2 | 18.62 |
| BICV103 | 12.7 | -25 | 25.35 | 3.62 | 2 | 23.82 |
| BICV104 | 12.7 | -30 | 30.55 | 3.33 | 2 | 28.89 |
| BICV105 | 12.7 | -40 | 41.02 | 2.99 | 2 | 39.04 |
| BICV106 | 12.7 | -50 | 51.4 | 2.79 | 2 | 49.08 |
| BICV107 | 12.7 | -75 | 77.45 | 2.52 | 2 | 74.24 |
| BICV108 | 12.7 | -100 | 103.28 | 2.39 | 2 | 99.16 |
| BICV201 | 25.4 | -25 | 24.72 | 9.02 | 2 | 22.24 |
| BICV202 | 25.4 | -31.7 | 31.55 | 7.34 | 2 | 29.15 |
| BICV203 | 25.4 | -35 | 35.08 | 6.76 | 2 | 32.66 |
| BICV204 | 25.4 | -50 | 50.93 | 5.22 | 2 | 48.22 |
| BICV205 | 25.4 | -75 | 77.09 | 4.11 | 2 | 73.63 |
| BICV206 | 25.4 | -100 | 103.04 | 3.57 | 2 | 98.73 |
| BICV207 | 25.4 | -125 | 129.12 | 3.25 | 2 | 123.92 |
| BICV208 | 25.4 | -150 | 155.1 | 3.04 | 2 | 149 |
| BICV209 | 25.4 | -175 | 181.13 | 2.89 | 2 | 174.12 |
| BICV210 | 25.4 | -200 | 207 | 2.78 | 2 | 199.07 |
| BICV211 | 25.4 | -250 | 258.9 | 2.62 | 2 | 249.12 |
| BICV212 | 25.4 | -300 | 310.8 | 2.52 | 2 | 299.17 |
| BICV213 | 25.4 | -500 | 518.3 | 2.31 | 2 | 499.21 |
| BICV214 | 25.4 | -1000 | 1037.1 | 2.16 | 2 | 999.32 |
| BICV301 | 38 | -45 | 44.87 | 10.44 | 2 | 41.46 |
| BICV302 | 38 | -50 | 49.97 | 10.5 | 3 | 46.4 |
| BICV303 | 38 | -100 | 102.57 | 6.55 | 3 | 97.78 |
| BICV304 | 38 | -150 | 154.7 | 5.34 | 3 | 148.23 |
| BICV305 | 38 | -200 | 206.7 | 4.75 | 3 | 198.46 |
| BICV306 | 38 | -350 | 362.4 | 4 | 3 | 348.66 |
| BICV307 | 38 | -500 | 518.1 | 3.7 | 3 | 498.79 |
| BICV308 | 38 | -700 | 725.6 | 3.5 | 3 | 698.84 |
| BICV401 | 40 | -63.5 | 64.42 | 8.27 | 1.9 | 60.7 |
| BICV501 | 50 | -100 | 102.06 | 9.2 | 3 | 96.9 |
| BICV502 | 50 | -150 | 154.27 | 7.1 | 3 | 147.6 |
| BICV503 | 50 | -200 | 206.28 | 6 | 3 | 198 |
| BICV504 | 50 | -250 | 258.22 | 5.4 | 3 | 248.2 |
| BICV505 | 50 | -400 | 413.87 | 4.5 | 3 | 398.5 |
| BICV506 | 50 | -450 | 465.73 | 4.3 | 3 | 448.6 |
| BICV507 | 50 | -500 | 517.58 | 4.2 | 3 | 448.6 |
| BICV508 | 50 | -600 | 621.28 | 4 | 3 | 598.7 |
| BICV509 | 50 | -800 | 828.64 | 3.8 | 3 | 798.7 |
| Material | Fused Silica | |||||
| BICV-FS01 | 6 | -15 | 14.03 | 1.5 | 2.15 | 15.5 |
| BICV-FS02 | 6 | -30 | 27.84 | 1.5 | 1.82 | 30.51 |
| BICV-FS03 | 12.7 | -15 | 14.11 | 2 | 5.02 | 15.67 |
| BICV-FS04 | 12.7 | -20 | 18.71 | 2 | 4.22 | 20.67 |
| BICV-FS05 | 12.7 | -25 | 23.32 | 2 | 3.76 | 25.68 |
| BICV-FS06 | 12.7 | -30 | 27.92 | 2 | 3.46 | 30.68 |
| BICV-FS07 | 12.7 | -40 | 37.12 | 2 | 3.09 | 40.68 |
| BICV-FS08 | 25.4 | -25 | 23.32 | 2 | 9.52 | 25.68 |
| BICV-FS09 | 25.4 | -35 | 32.52 | 2 | 7.17 | 35.68 |
| BICV-FS10 | 25.4 | -50 | 46.32 | 2 | 5.55 | 50.68 |
| BICV-FS11 | 25.4 | -75 | 69.33 | 2 | 4.35 | 75.69 |
| BICV-FS12 | 25.4 | -100 | 92.33 | 2 | 3.76 | 100.68 |
| BICV-FS13 | 25.4 | -150 | 138.34 | 2 | 3.17 | 150.68 |
| BICV-FS14 | 25.4 | -200 | 184.35 | 2 | 2.88 | 200.69 |
| BICV-FS15 | 25.4 | -250 | 230.36 | 2 | 2.7 | 250.69 |
| BICV-FS16 | 25.4 | -300 | 276.36 | 2 | 2.58 | 300.68 |
| BICV-FS17 | 25.4 | -500 | 460.4 | 2 | 2.35 | 500.69 |
| BICV-FS18 | 25.4 | -1000 | 920.48 | 2 | 2.18 | 1000.69 |
| BICV-FS19 | 38 | -50 | 46.48 | 3 | 11.12 | 51.02 |
| BICV-FS20 | 38 | -100 | 92.49 | 3 | 6.95 | 101.03 |
| BICV-FS21 | 38 | -150 | 138.5 | 3 | 5.62 | 151.03 |
| BICV-FS22 | 38 | -200 | 184.5 | 3 | 4.96 | 201.02 |
| BICV-FS23 | 38 | -350 | 322.53 | 3 | 4.13 | 351.03 |
| BICV-FS24 | 38 | -500 | 460.55 | 3 | 3.78 | 501.02 |
| BICV-FS25 | 38 | -750 | 690.59 | 3 | 3.52 | 751.02 |
| BICV-FS26 | 38 | -1000 | 920.64 | 3 | 3.39 | 1001.04 |
| PLCX-FS27 | 38 | 300 | 138.04 | 4.31 | 3 | 297.09 |
| PLCX-FS28 | 38 | 500 | 230.1 | 3.79 | 3 | 497.54 |
| PLCX-FS29 | 38 | 750 | 345.1 | 3.52 | 3 | 747.68 |
| PLCX-FS30 | 38 | 1000 | 460.1 | 3.39 | 3 | 997.73 |
High Precision Zero Order Waveplates
Zero order waveplate are constructed of two multiple order waveplates which is designed to give a retardance of zero full waves, plus the desired fraction. 1. Zero Order Waveplates-Cemented by Epoxy 2. Zero Order Waveplates-Optically Contacted 3. Zero Order Waveplates-Air-spaced
KTP Nonlinear Crystals
KTP crystal is mostly used as nonlinear crystals for frequency doubling of solid-state Nd:YAG crystal or Nd:YVO4 crystal laser, as it has large nonlinear optical coefficients, wide angular bandwidth and small walk-off angle, broad temperature and spectral bandwidth.
Homogenizing Rods Tapered Prism and Light Pipe and IPL Light Guide
Light Pipes also known as Homogenizing Rods, are Optical Components designed for any application that requires homogenized light. Material: BK7, Fused Silica Coating: Upon Requirement
α-BBO Birefringent Crystals
Alpha-BBO Crystals is high temperature phase of BaB2O4 is an excellent birefringent crystal; it is characterized by large birefringent coefficient and wide transmission window from 189nm to 3500nm.
Selective Absorption Colored Glass Filters
Selective Absorption Colored Glass Filters This part of the glasses can be divided into 14 kinds and 78 types based on the color and application in this catalogue.
Polarizing Beamsplitter Cubes (PBS)
Polarizing Beamsplitter Cubes are constructed by cemented two right angle prisms High Damage Threshold Coated for Laser line 355, 405, 532, 633, 780 - 808, 1064 nm or Broadband
