Dielectric Coated Mirror

LOADING IMAGES

High Reflective Broadband Dielectric Mirrors

Dielectric Mirrors offer near total reflection, minimizing losses in nearly all optical systems.
AOI=45°, R>99.5% (Rs>99.9%, Rp>99.2%).
AOI=0°, R>99.8%
  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

High Reflective Broadband Dielectric Mirrors


Dielectric Mirrors offer near total reflection, minimizing losses in nearly all optical systems. These coatings are very durable, easily cleaned, and resistant to laser damage.


Available either broadband or narrowband, they operate efficiently over 0–45°angle of incidence:

AOI=0°, R>99.8%;
AOI=45°, R>99.5% (Rs>99.9%, Rp>99.2%).

Specifications:
Material: N-BK7 or UV Fused Silica or other optical Glass
Dimension Tolerance: +0.0, -0.1mm
Thickness Tolerance: +/- 0.1mm
Surface quality: 60/40(Standard), 10/5(High Precision)
Clear Aperture: >85%
Flatness: Lambda/4 per 25mm@633nm
Parallelism: <1'
Bevel: <0.25mmx45°
Coating: One surface(S1) :HR @ design wavelengthBroadband or Narrowband

The other surface :uncoated

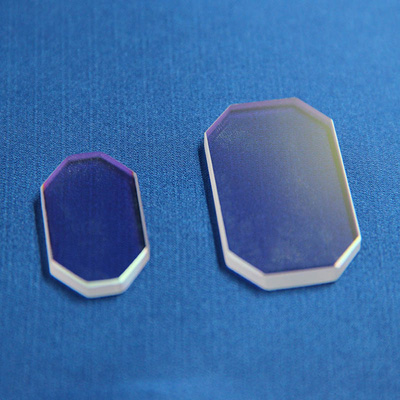

Dielectric Mirrors

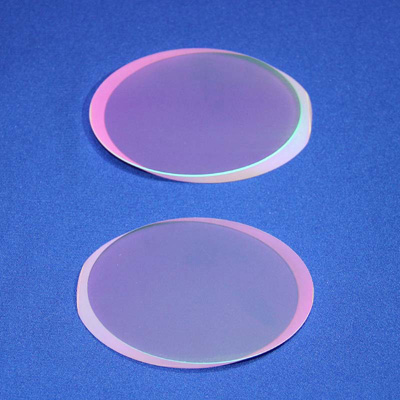

Elliptical Dielectric Mirrors

Typical Sizes:
Size(mm) Size(mm)
Φ5.0x1.0 10.0x10.0x3
Φ10.0x2.0 20.0x20.0x3
Φ12.7x2.0 25.4x25.4x3
Φ15.0x3.0 30.0x30.0x5

Other size and shape are available. Different coating design are available. Contact us now! You can get competition price here!
