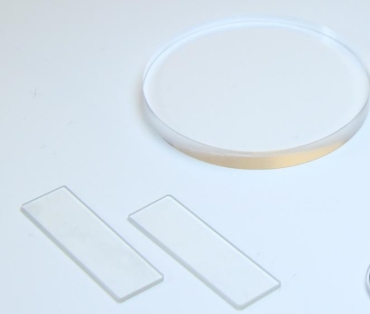

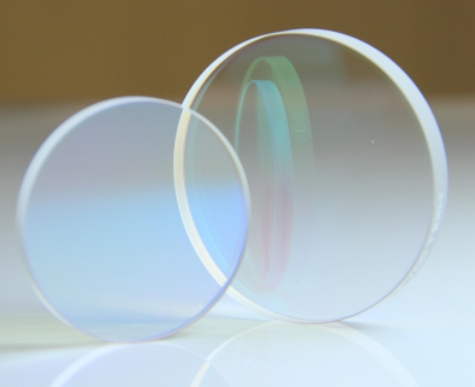

Custom-Sized Optical Glass Round Windows

Custom-Sized Optical Glass Round Windows

Round window can be made of different materials according to customer needs, with or without AR.Widely used in laser protection, medical imaging, projection, etc.

  • Payment :

    T/T Payment, Western Union
  • Shipping Port :

    Fuzhou China
  • product orgin :

    China
  • Product Details

Custom-Sized Optical Glass Round Windows

It can be made of different materials according to customer needs, with or without AR.Widely used in laser protection, medical imaging, projection, etc.



Features:

Shape: Standard round with symmetrical center.

Edge Finish: Usually beveled or rounded.



Advantages:

(1) Uniform stress distribution: round structure without sharp corners, high compressive strength, suitable for high pressure or high power laser environment.

(2) Convenient installation: can be directly screwed or O-ring sealed, commonly used in vacuum systems.

(3) Stable optical performance: rotational symmetry reduces dispersion, suitable for imaging systems.



Specification
Material Fused Silica,, SCHOTT, OHARA, CDGM,Infrared Material
Size 0.5-600mm
Dimension Tolerance
+0.0, -0.1mm
Thickness Tolerance
± 0.1mm
Parallelism
1' (Standard),  10" (High Precision)
Flatness 1λ to λ/20 @632.8nm
Surface Quality 60/40(Standard), 10/5(High Precision)
Effective Aperture 90%
Coating Upon requirement



Main applications:

(1) Optical instruments

(2) Lighting systems;

(3) laser protection;

(4) medical imaging;

(5) projection etc.
