Optical High Precision Rhomboid Prisms

Laboratory-specific precision NBK7 diamond prism

Optical High Precision Rhomboid Prisms

Rhomboid prisms have an octahedral structure composed of parallel rhombic surfaces that can accurately translate light beams without altering the propagation direction of light, achieving lateral displacement of the optical axis. Rhombic prisms are commonly used in optical instruments such as binocular eyepieces for microscopes and rangefinders, effectively translating light without inverting the image.





  • Payment :

    T/T Payment, Western Union

  • Shipping Port :

    Fuzhou China

  • product orgin :

    China
Inquiry Now
  • Product Details

Optical High Precision Rhomboid Prisms

Product Overview：Rhombic prisms are usually made of BK7A or fused quartz. They can move the light beam laterally without changing its direction, and can achieve functions such as beam splitting and polarization separation through coating.

Rhomboid prisms have two main application.
1. They  are commonly used to displace a laser beam without changing its direction.

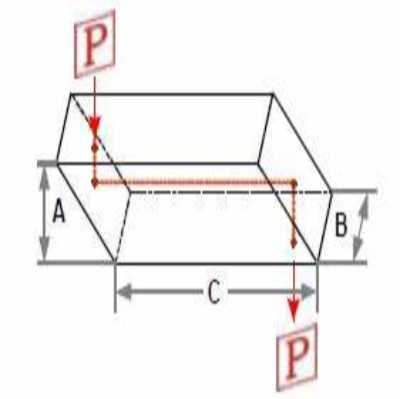

2. In imaging applications, they will displace the optical axis without inverting the image.





Specifications:
Material: N-BK7; UV Fused Silica  ;other optical glass
Dimension Tolerance: +0.0,-0.2mm
Surface quality: 60-40 S/D
Surface flatness: λ/2 @ 632.8nm
Angle Tolerance: ±3 arc min
Clear Aperture: >85% of dimension
Bevel: <0.25mm×45
Coating: Upon requirement



Rhomboid prisms Glass Rhomboid prisms High-precision rhombic prism



Scope of application：

  1. Optical imaging: used to adjust the optical path for clearer and more stable imaging, making observation easier.
  2. Surveying and measurement: used for precise measurement of angles and distances.
  3. Military: The application in military equipment such as periscopes and gun sights allows observers to see concealed targets.
  4. Laser technology: Adjusting the path of the laser beam to achieve precise control of the beam.
