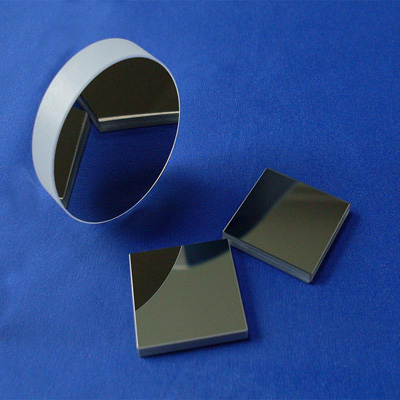

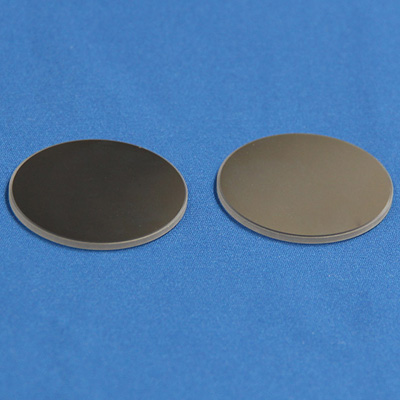

Optical Gold/Silver/Aluminum Coated Mirrors

Optical Gold/Silver/Aluminum Coated Mirrors

Metal mirrors offer broadband, low-dispersion performance, and their reflectivity is nearly constant over a large spectral range, regardless of the incident angle or polarization state.

They are widely used in medical imaging, laser systems, aerospace, and other fields.

  • Payment :

    T/T Payment
  • Product Origin :

    China
  • Shipping Port :

    Fuzhou, China
  • Product Details

Optical Gold, Silver, Aluminum Coated Mirrors

WTS can customize reflectors to meet customer needs, including dielectric and metal mirrors, and can produce substrates of different shapes as required.



Reflective bands:

Al: 200 nm (UV) to 20 μm (FIR)

Ag: 400 nm (visible) to 20 μm (far infrared)

Au: 600 nm (red) to 20 μm (far infrared)



Advantages:

Al: (1) The only low-cost metal that covers UV to IR.

       (2) A natural oxide layer (Al₂O₃) provides some protection.

Ag: (1) Optimal reflectivity in the visible region, suitable for high-precision optical systems.

       (2) Infrared performance close to that of gold, at a lower cost.

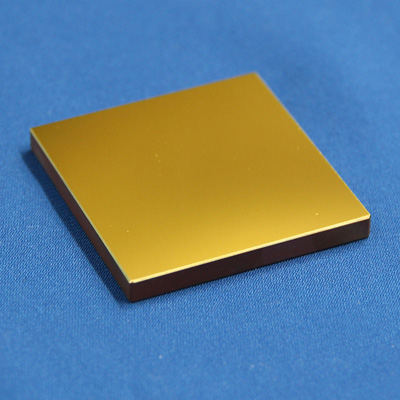

Au: (1) Highest infrared reflectivity and corrosion resistance (resistant to oxidation, acids, and alkalis).

      (2) Suitable for high-humidity or vacuum environments..



Specifications
Material Fused silica, SCHOTT, OHARA, CDGM, infrared materials
Size 1-500 mm
Flatness 3λ to λ/10 @ 632.8 nm
Surface Quality 60/40 to 10/5
Effective Aperture 90%
Coating Al, Ag, Au



Main applications

(1)medical imaging,

(2)laser,

(3)aerospace, etc.
