Corner Cube Prism

LOADING IMAGES

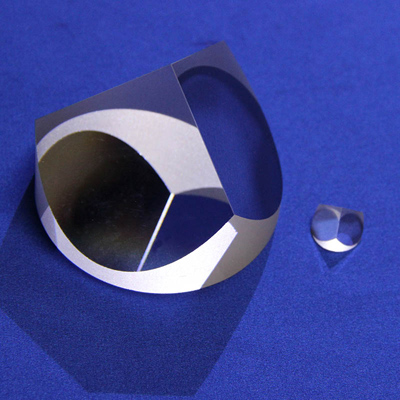

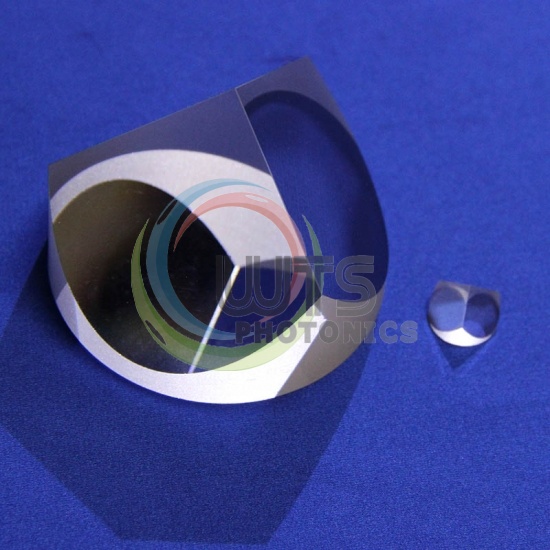

High Accuracy Corner Cube Prism

Retroreflectors (Corner Cube Prisms) reflect an image or beam back toward its original direction via three total internal reflections (TIR)

180° Reflection Inverts Image
3 arcsec Beam Deviation


  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features
High Accuracy Corner Cube Prism

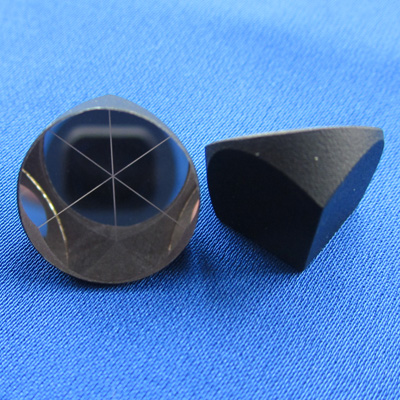

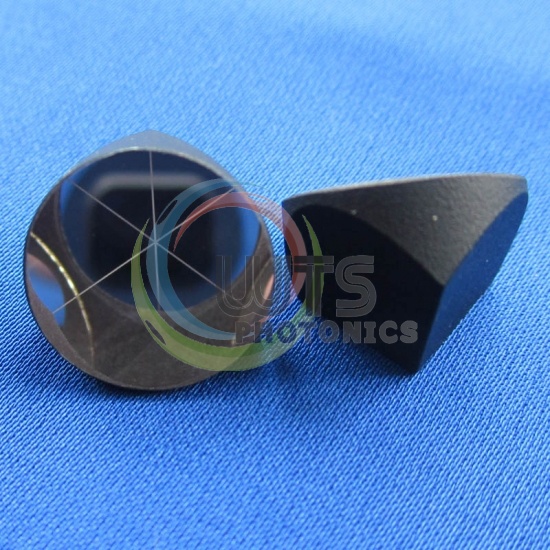

Corner Cube Prism also called  Retroreflector. It has three mutually perpendicular surfaces and a hypotenuse face. Light entering through the hypotenuse is reflected by each of the three surfaces in turn and will emerge through the hypotenuse face parallel to the entering beam regardless of the orientation of the incident beam. For its special performance,it is often used to the distance measurement, optical signal process and laser.


Specifications:
Material: N-BK7, Fused Silica
Dimension Tolerance: +0.0, -0.2mm
Surface quality: 40-20 S/D
Surface flatness: λ/4 on front surface,λ/8 on reflective surfaces
Deviation 180°: ±5 arc sec(Standard);  ±3 arc sec(High Precision)
Clear Aperture: >85% of dimension
Bevel: <0.25mm×45°
Coating: 1.Uncoated
2.Silver(Copper)+ Black paint on reflective surfaces
3.AR coating, R<0.25%, on front surface AOI=0°;
Silver(Copper) + Black paint on reflective surfaces.

Corner Cube PrismsRetroreflector PrismsSurvey Mini PrismCorner Retroreflectors

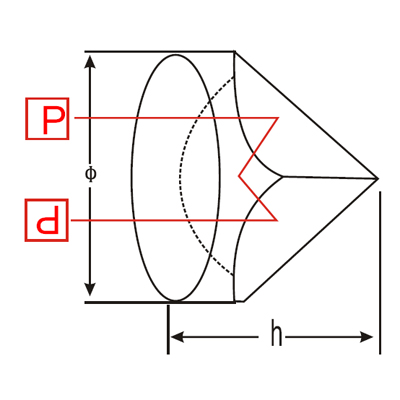

Typical Sizes:
Diameter(mm) Height(mm) Deviation
Φ12.7 10.2 180+/-5"
Φ15.0 11.3 180+/-5"
Φ25.4 19 180+/-5"
Φ38 28.5 180+/-5"
Φ50.8 37.5 180+/-5"
Φ70 52.5 180+/-5"

Other sizes and shapes are available.


Request a free quote

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
