X-Cube

LOADING IMAGES

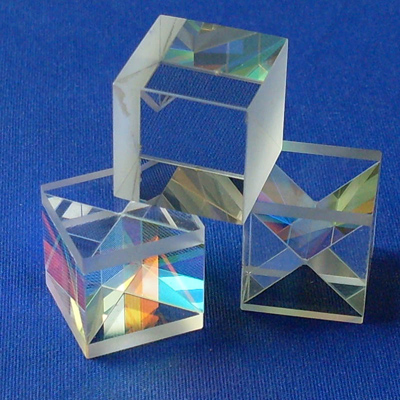

High Precision Glass X-Cube and RGB Prisms

X-Cube (RGB Prism)

Used under any polarization state
High brightness
Excellent White balance

  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

High Precision Glass X-Cube and RGB Prisms

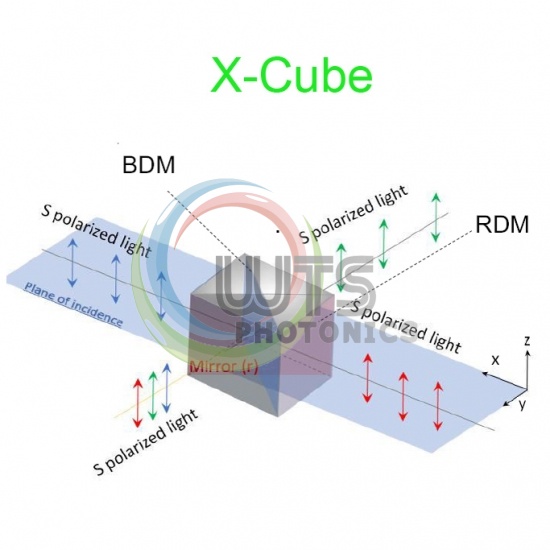

X-Cube (RGB Prismdesigned for reflective LCOS Projector, matrix camera applications, and is well-suited to fast lenses imaging onto three CCD/CMOS sensors.


1. Used under any polarization state
2. High brightness
3. Excellent White balance
4. Different coating, Different size are available

Typtical Size: 10x10x10mm, 20x20x17mm etc.

All of our Glass X-Cube and RGB Prisms can be customized here. WTS PHOTONICS CO., LTD is your best choose!

Request a free quote

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
