Step Window

LOADING IMAGES

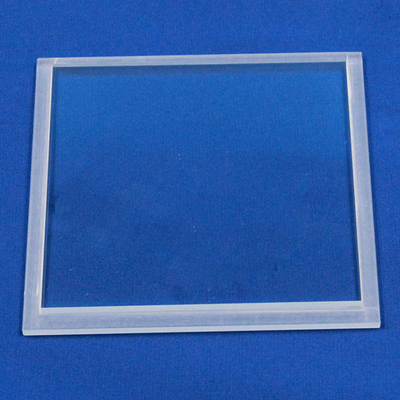

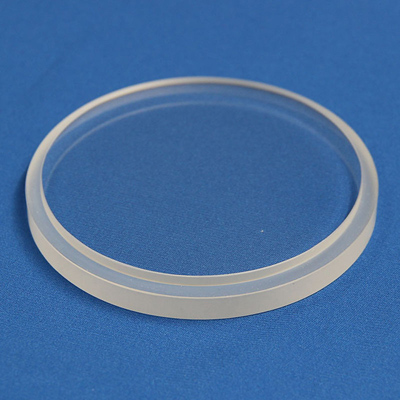

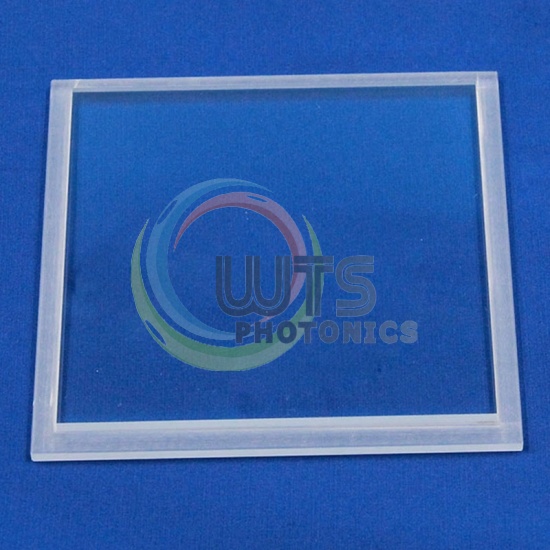

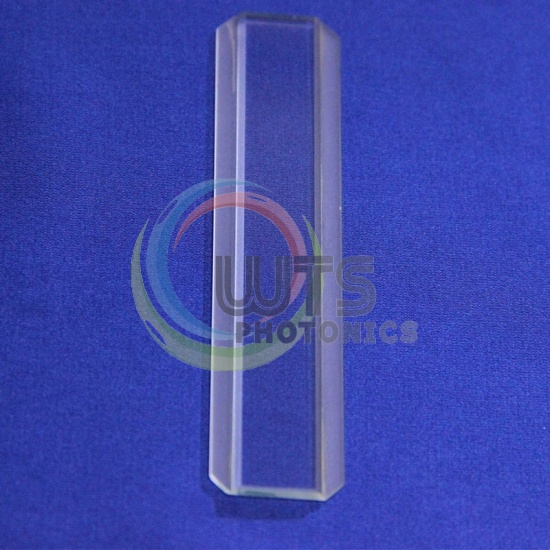

High Presion Optical Step Windows

Custom step windows are ideal use in viewports, pressure, and vacuum situations. Sapphire step windows also make great viewports for deep ocean vehicles.


  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

High Presion Optical Step Windows


Custom step windows are ideal use in viewports, pressure, and vacuum situations. Sapphire step windows also make great viewports for deep ocean vehicles.

Feel free to contact us for your customized step windows circle, square with different materal.


Step Windows Specification:

Material: BK7, Fused Silica, Sapphire etc. Optical glass
Dimension Tolerance: +0.0, -0.1mm
Thickness Tolerance: ± 0.1mm
Surface quality: 20/10-80/50
Clear Aperture: >85%
Flatness: λ/10-2λ
Parallelism: 10"-3'
Bevel: <0.25mm X 45°
Coating: Upon requirement

Step WindowsSapphire Step Windows
