ZnS Window

LOADING IMAGES

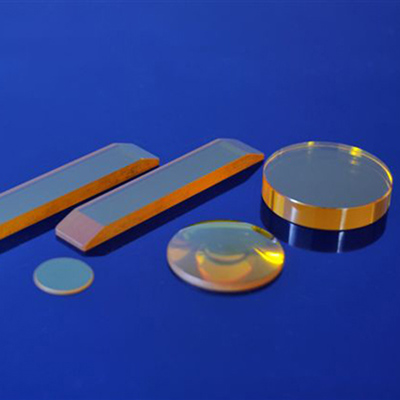

IR Windows Zinc Sulfide ZnS Windows

ZnS is used widely for IR components, windows and lenses, and applied for Thermal Imaging, long-wave infrared sensors.

  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

IR Windows Zinc Sulfide (ZnS) Windows


Zinc Sulfide (ZnS) is grown by chemical vapor deposition(CVD) method. It exhibits exceptional fracture strength and hardness leading to its frequent choice for military applications or other harsh environments. It is often used in the range of 3-5um and 8-12um. MultiSpectral grade ZnS(MS) is treated after growth to eliminate microscopic  voids and efects  which  occur  in the regular grade ZnS, thus extending the usefulness of this material to the visible region.


WTS offer CVD ZnS and Cleartran ZnS material windows, lenses etc. products.

ZnS Windows SPECIFICATION:

Material: Zinc Sulfide (ZnS)
Dimension Tolerance: +0.0, -0.1mm
Thickness Tolerance: ± 0.1mm
Surface quality: 60/40
Clear Aperture: >85%
Flatness: λ per 25mm
Parallelism: 3'
Bevel: <0.25mm X 45°
Coating: AR Coated  or Up Requirement

ZnS WindowsCleartran ZnS Windows


Typical Sizes:

Round Shape Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
Diameter(mm): Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
Square Shape: 5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
WxH(mm) 20.0x20.0; 25.0x25.0; 50.0x50.0
Thickness(mm): 0.5; 1.0; 1.5; 2.0; 3.0;
4.0; 5.0; 6.0; 8.0; 10.0
