Al, Ag, Au Coated Mirror

LOADING IMAGES

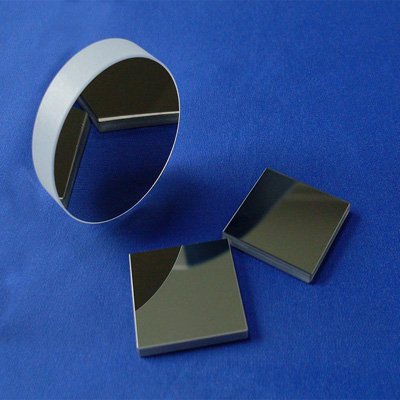

Optical Aluminum Coated Mirrors

Optical Aluminum Coated Mirrors

Average Reflectance >88% from 450 nm to 10 µm
Shape could be customized: Round, Square, Elliptical, Right angle prisms
Material could be customized: Fused silica, Pyrex, N-BK7

  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

Optical Aluminum Coated Mirrors


You know mirror is an object with a surface that has good specular reflection. that is, it is smooth enough to form an image. The most familiar type of mirror is the plane mirror, which has a flat surface. Curved mirror are also used, to produce magnified or demagnified images or focus light or simply distort the reflected image.


WTS make customized Protected Aluminum Mirrors, Enhanced Aluminum Mirrors.

Aluminum coated mirrors

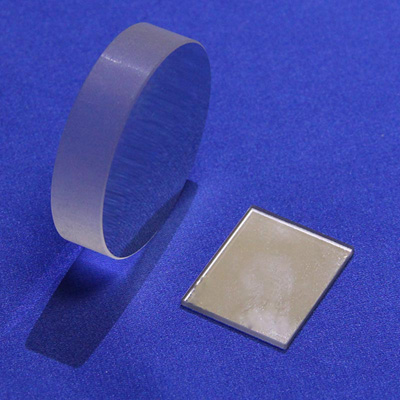

Al coated mirrors

Aluminum coated mirrors shape could be circle, square, elliptical or right angle prisms or glued together.


Aluminum coated mirrors Specifications:

Material: N-BK7 ; UV Fused Silica ;other optical glass

Dimension Tolerance:  +0/-0.1mm

Thickness Tolerance:   '+/-0.1mm

Surface quality: 60/40

Clear Aperture:  >85%

Flatness:  λ/4 per 25mm@633nm

Parallelism: <3'

Bevel: <0.25mmx45°


Coating:

One surface(S1) :Polished and Metallic coating (Al, Ag, Au)

The other surface :Fine ground

Protected Aluminum Mirrors: Ravg> 85%@400nm-800nm

VIS Enhanced Aluminum Mirrors :Ravg> 90% @450nm-750nm

UV Enhanced Aluminum Mirrors:Ravg > 80%@250nm-400nm


Typical Sizes:

Size(mm)     Size(mm)

Φ5.0x1.0     10.0x10.0x3

Φ10.0x2.0   20.0x20.0x3

Φ12.7x2.0   25.4x25.4x3

Φ15.0x3.0   30.0x30.0x5


We are founded in 2009, successively introduced advanced optical processing equipment from home and abroad, and hired the production of experienced staff. If you are need Optical Aluminum Coated Mirrors,Glass Aluminum Coated Mirrors and other mirrors products you want customized, Please contact us!

Request a free quote

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
