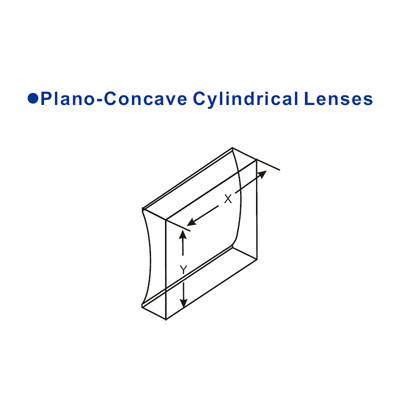

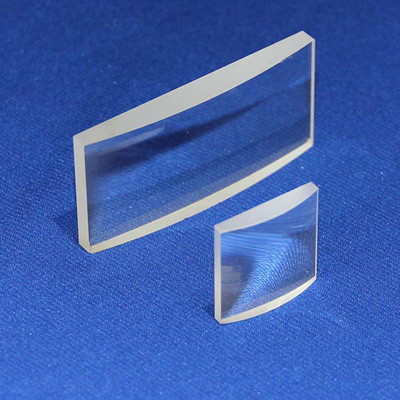

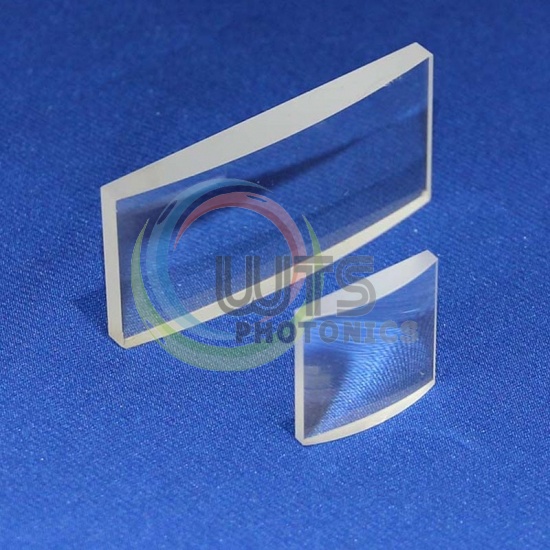

Optical Glass Plano-Concave Cylinrical Lenses

Plaon-concave cylindrical lenses are used to provide focusing power in one section only, For illumination or detection of light from line sources.Also used for anamorphic compression of beams and images.
1. Ideal for Applications Requiring Magnification in One Dimension
2. Used to Transform a Collimated Beam into a Line
3. Rectangular and Circular Form Factors Available

product orgin:
China
shipping port:
Fuzhou China
payment:
T/T Payment, Western Union

inquiry now

features

Optical Glass Plano-Concave Cylinrical Lenses

Plaon-concave cylindrical lenses are used to turn a collimated laser source into a line generator.
1. Ideal for Applications Requiring Magnification in One Dimension
2. Used to Transform a Collimated Beam into a Line
3. Rectangular and Circular Form Factors Available

WTS offer coated and uncoated N-BK7, Fused silica Plano-concave Cylinrical Lenses.

Specification:

Material:	Grade A optical glass or Fused Silica
Dimension Tolerance:	+0.0, -0.1mm
Center Thickness Tolerance:	±0.1mm
Paraxial Focal Length:	±2%
Surface quality:	60/40
Clear Aperture:	>85%
Surface Figure:	λ/4 @633nm
Centration:	3 arc minutes
Bevel:	<0.25mm×45°
Coating:	Upon requirement

Optical Glass Cylindrical Lenses Plano-Concave Cylindrical Lenses

Plano-concave cylindrical lenses provide uni-axial negative imaging for anamorphic beam expansion and a wide range of applications.These lenses may also be used as mirror blanks if a concave cylindrical surface mirror is required.

Note for Spherical Lens:
a. Other optical glass materials from Schott, Ohara, Hoya or Chinese CDGM, UVFS from Heraeus, Corning, Germanium, Silicon, ZnSe, ZnS, CaF2, Sapphire are also available upon request .
b. Custom-made Spherical Lenses at any size from diameter 1.0 to 300mm are available upon request.

One stop service for Vision Optics-Laser Optics-Medical Optics-5G Optical Communication-Military Optics.

Typical Sizes

Item No.	XxY(mm)	f(mm)	R(mm)	Tc(mm)	Te(mm)	Fb(mm)
Material	N-BK7
CLV101	10.0x10.0	-12.7	6.54	2	4.3	-14
CLV102	20.0x10.0	-12.7	6.54	2	4.3	-14
CLV103	10.0x10.0	-25	12.87	2	3	-26.3
CLV104	20.0x10.0	-25	12.87	2	3	-26.3
CLV201	20.0x20.0	-50	25.73	2	4	-51.3
CLV202	20.0x20.0	-75	38.6	2	3.3	-76.3
CLV203	20.0x20.0	-100	51.47	3	4	-102
CLV204	20.0x20.0	-150	77.2	3	3.7	-152
CLV205	20.0x20.0	-200	102.93	3	3.5	-202
CLV206	20.0x20.0	-250	128.67	3	3.4	-252
CLV207	20.0x20.0	-500	257.33	3	3.2	-502
