4K 7μm Line Scan Lens

Compatible with 4K 7 μm line scan cameras.
Wide magnification range:0.02x-0.28x.
Widefield ofviewunder short working distance, spacesaving for equipment.
High-precision focusing durable and shock-resistant.

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

Features:

Compatible with 4K 7 μm line scan cameras.
Wide magnification range:0.02x-0.28x.
Widefield ofviewunder short working distance, spacesaving for equipment.
High-precision focusing durable and shock-resistant.

Applications:

Photovoltaic, Printing, Films, Fabric, Paper, Steel.

Specifications：

Model	EFL(mm)	Center MageDistorion	Mag Range	WD(mm)	F#	Img.Circle(mm)	Mount
LS2540A	25	0.1x@0.2%	0.02-0.2	134.1-1279.3	4.0-16	φ29	M42
LS3540A	35	0.15x@0.37%	0.02-0.28	145-2000	4.0-16	φ29	M42

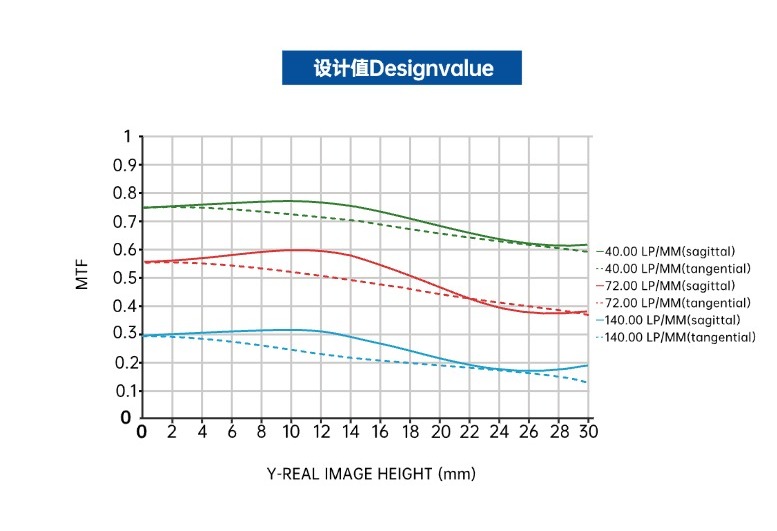

MTF vs Field

MTF vs Field- 16k 3.5μm Line Scan Lens

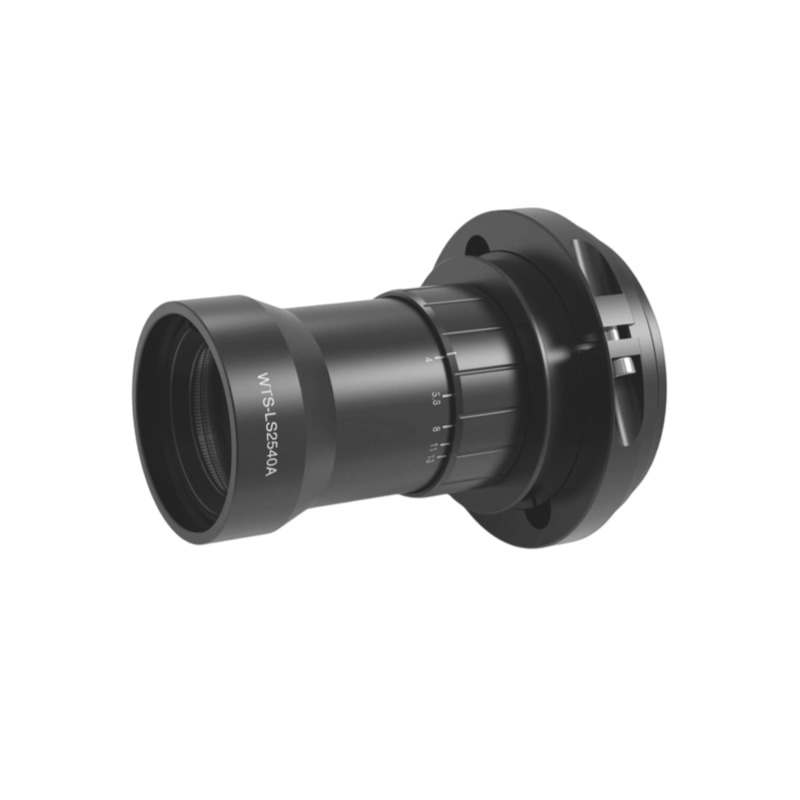

4K 7μm - LS2540A

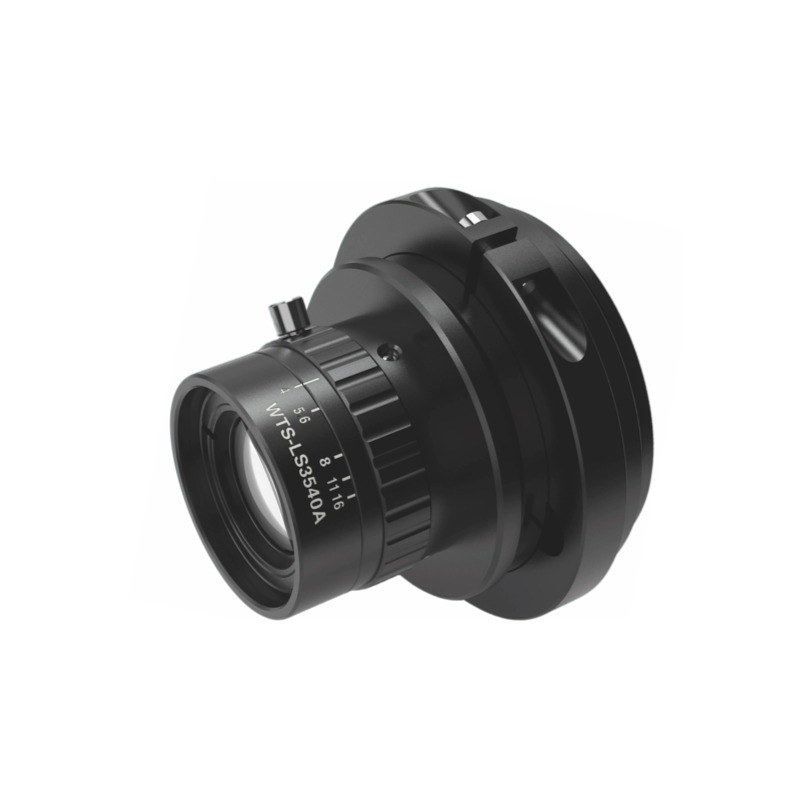

4K 7μm - LS3540A

Hot Tags : Line Scan Lens 4K 7μm Line Scan Lens 4K 7 μm linescan cameras High-precision focusing linescan cameras
