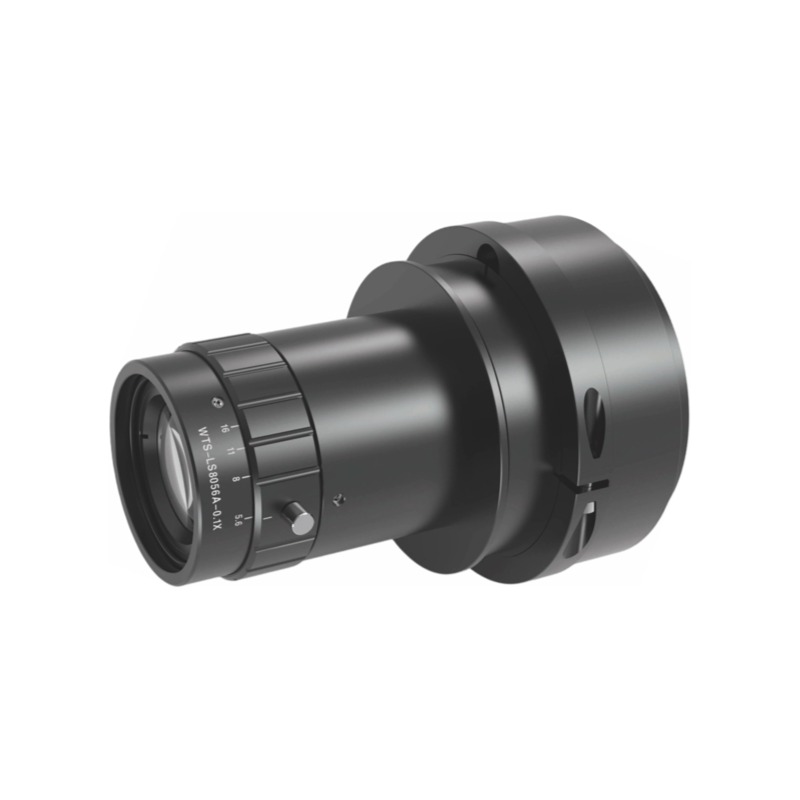

16K 3.5μm Line Scan Lens &151MP Large Format Lens

Compatible with 16K3.5μm line scan cameras and 151-megapixel area scan.
Magnification adaptation range:0.07x-0.4x.
High-precision focusing,durable and shock-resistant.

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

Features:

Compatible with 16K3.5μm line scan cameras and 151-megapixel area scan.
Magnification adaptation range:0.07x-0.4x.
High-precision focusing,durable and shock-resistant.

Applications:

Semiconductor wafers, PCBs, IC substrates, Display panels, New displays.

Specifications：

Model	EFL(mm)	Center Mage@Distorion	Mag Range	WD(mm)	F#	Img.Circle(mm)	Mount
LS8056A-0.1x	80	0.1x@0.2%	0.07-0.18	510-1200	5.6-16	φ67	M58, M72
LS8056A-0.24x	80	0.24x@0.35%	0.18-0.4	250-500	5.6-16	φ67	M58, M72

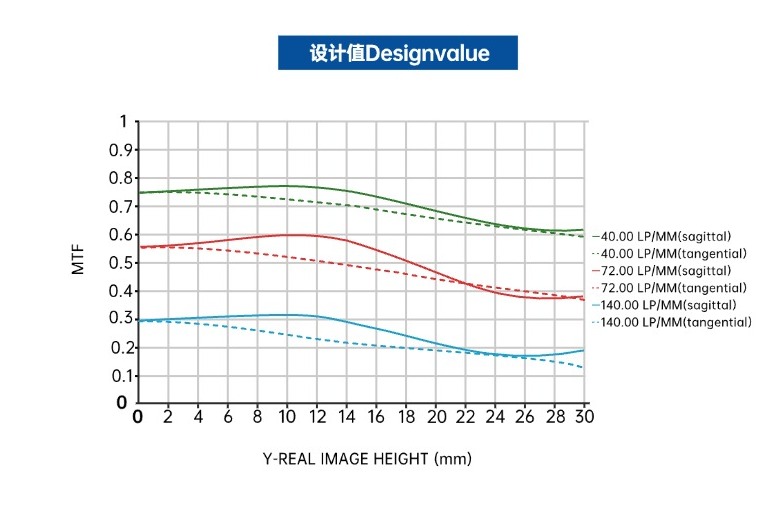

MTF vs Field

MTF vs Field- 16k 3.5μm Line Scan Lens

Hot Tags : 16K 3.5μm Line Scan Lens High-precision focusing Line Scan Lens 151MP Large Format Lens
