8K 7μm Line Scan Lens

Compatible with 8K7μm line scan cameras.
Magnification:0.05x-0.33x.
High-precision focusing,durable and shock-resistant.

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

Features:

Compatible with 8K7μm line scan cameras.
Magnification:0.05x-0.33x.
High-precision focusing,durable and shock-resistant.

Applications:

LIB, Printing, Film, Glass, Steel, Ceramics.

Specifications：

Model	EFL(mm)	Center MageDistorion	Mag Range	WD(mm)	F#	Img.Circle(mm)	Mount
LS4056A-0.07x	40	0.07x@0.41%	0.05-0.17	265-800	5.6-16	φ59	M58, M72
LS4056A-0.07x	40	0.23x@0.6%	0.17-0.33	158.7-260	5.6-16	φ59	M58, M72
LS6056A	60	0.17x@0.28%	0.05-0.33	226-1200	5.6-16	φ60	M58, M72

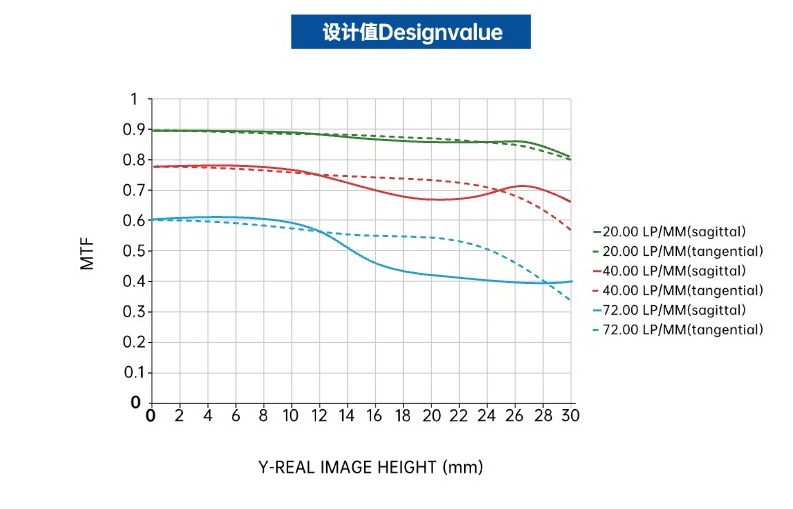

MTF vs Field

MTF vs Field-8K 7μm Line Scan Lens

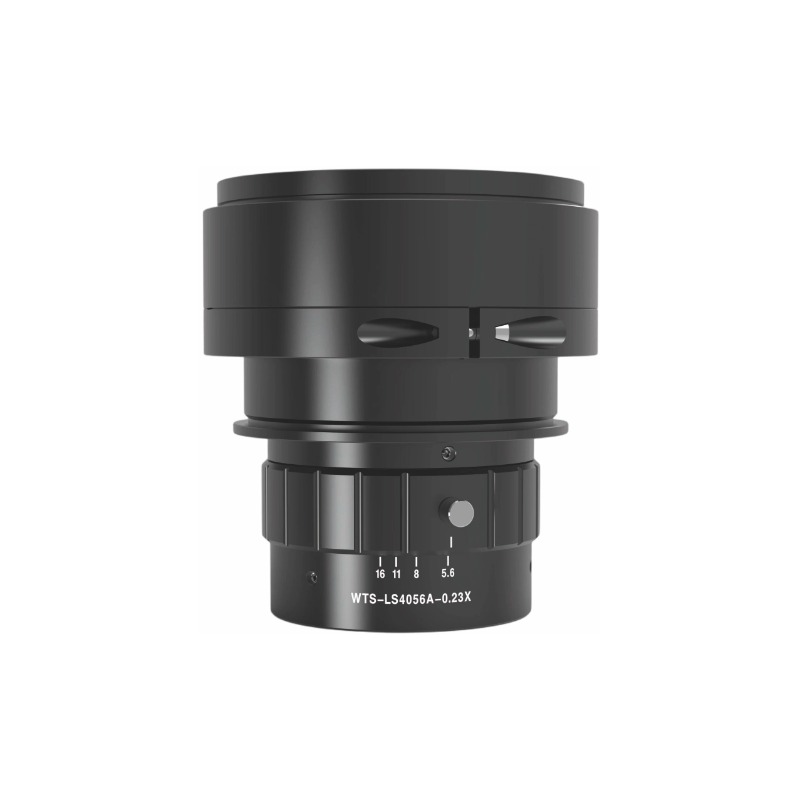

8K 7μm - LS4056A-0.23x

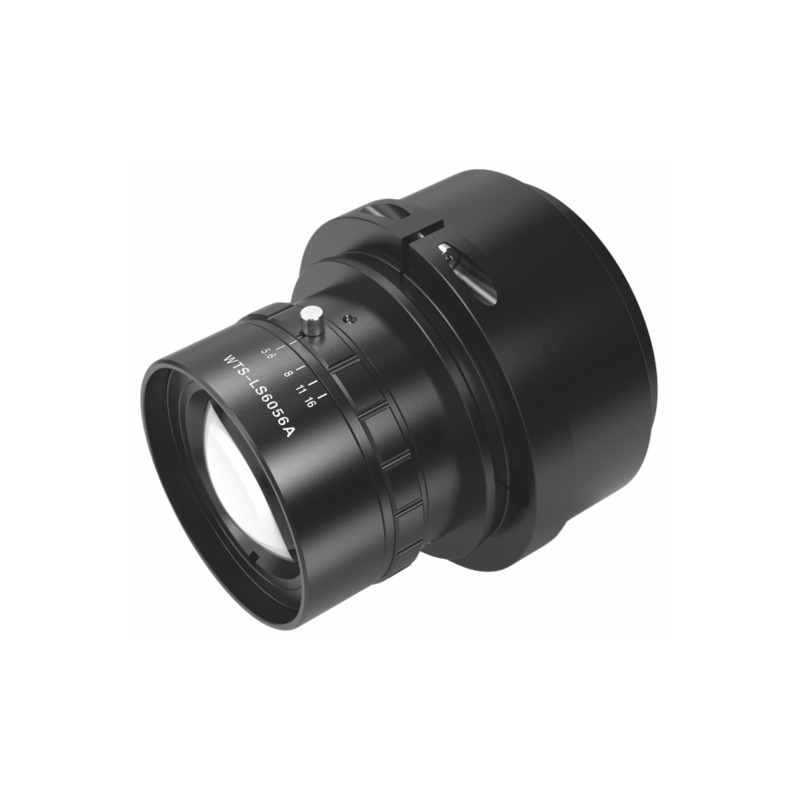

8K 7μm - LS6056A

Hot Tags : 8K 7μm Line Scan Lens High-precision Line Scan Lens Line Scan Lens for Printing
