Brewster Mirror

LOADING IMAGES

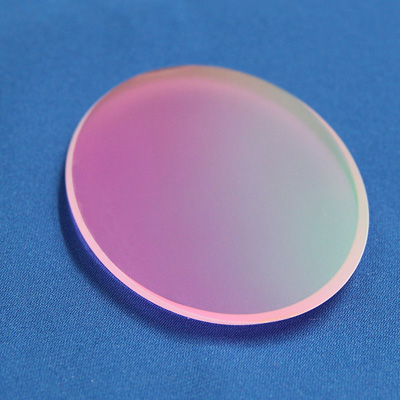

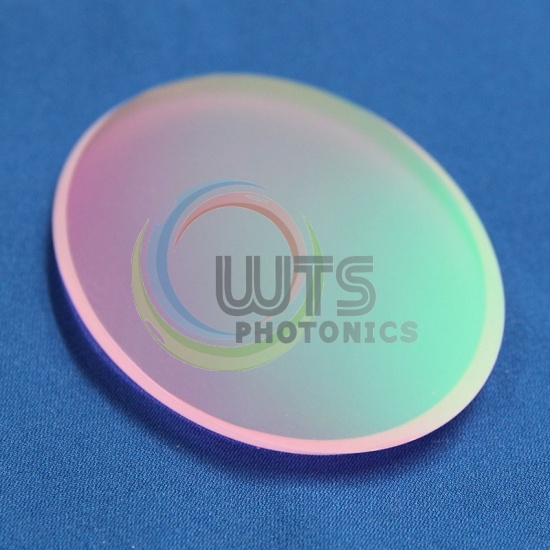

Optical Brewster Mirror and Elliptical Shape Mirrors

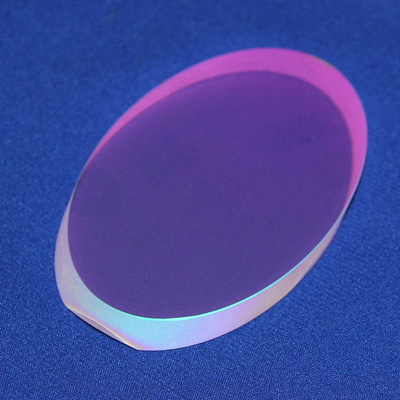

Elliptical Shape Mirrors

Made of by Fused Silica or N-BK7

Coated by Dielectric coating or metal (Al, Au, Ag)coating

Shape could be customized

  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

Optical Brewster Mirror and Elliptical Shape Mirrors


Mirrors are used to fold,bend and focus optical beams.They are usually processed into round,rectangle.Other shapes of mirror are available upon your request

WTS could make elliptical shape mirrors according to your design.


Made of by Fused Silica or N-BK7 etc.

Coated by Dielectric coating Aluminum, Silver or Gold coating

Shape could be customized


Selecting the proper mirror for your application requires making a number of choices. A few of the many considerations include: Reflectivity, Laser Damage Resistance, Coating Durability, Thermal Expansion of the substrate, Wavefront Distortion, Scattered Light, and certainly Cost.

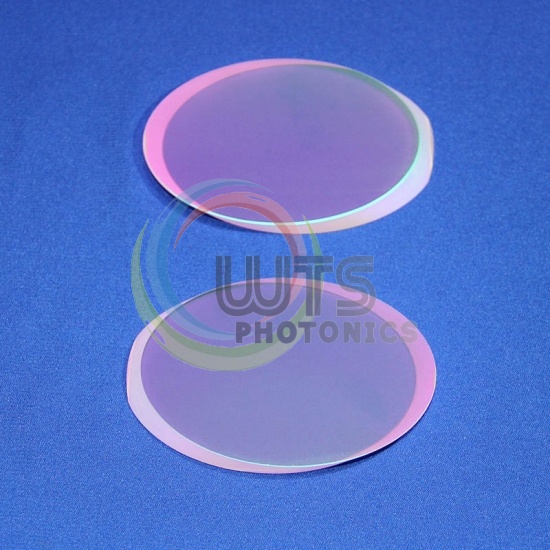

Elliptical Shape MirrorsOval Shape Mirrors
