Home Lens Assembly

16K 5μm Line Scan Lens

Compatible with 16K5μm/12K5μm line scan cameras.
Magnification range:0.24x-0.78x.
Ultra-high resolution output with nearly zero chromatic aberration.
High-precision focusing,shock resistance &long service life.

Payment :
T/T Payment
Product Origin :
China
Shipping Port :
Fuzhou, China

Inquiry Now

Product categories

New products

Product Details

Features:

Compatible with 16K5μm/12K5μm line scan cameras.
Magnification range:0.24x-0.78x.
Ultra-high resolution output with nearly zero chromatic aberration.
High-precision focusing,shock resistance &long service life.

Applications:

Semiconductor wafers, PCBs, IC substrates, Display panels, New displays.

Specifications：

Model	EFL(mm)	Center Mage@Distorion	Mag Range	WD(mm)	F#	Img.Circle(mm)	Mount
LS12045A-0.24x	120	0.24x@0.045%	0.21-0.27	540-670.3	4.5-16	φ82	M58, M72, M90, M95
LS12045A-0.33x	120	0.33x@0.03%	0.3-0.36	423.5-490.8	4.5-16	φ82	M58, M72, M90, M95
LS12045A-0.416x	120	0.416x@0.05%	0.38-0.45	355.4-404.6	4.5-16	φ82	M58, M72, M90, M95
LS12045A-0.5x	120	0.5x@0.008%	0.47-0.53	305.7-334.8	4.5-16	φ82	M58, M72, M90, M95
LS12045A-0.625x	120	0.625x@0.008%	0.59-0.66	259.7-280.8	4.5-16	φ82	M58, M72, M90, M95
LS12040A-0.7x	120	0.7x@0.0035%	0.68-0.73	245.8-256.2	3.8-16	φ82	M58, M72, M90, M95
LS12040A-0.78x	120	0.78x@0.003%	0.75-0.8	231.4-240.7	3.8-16	φ82	M58, M72, M90, M95

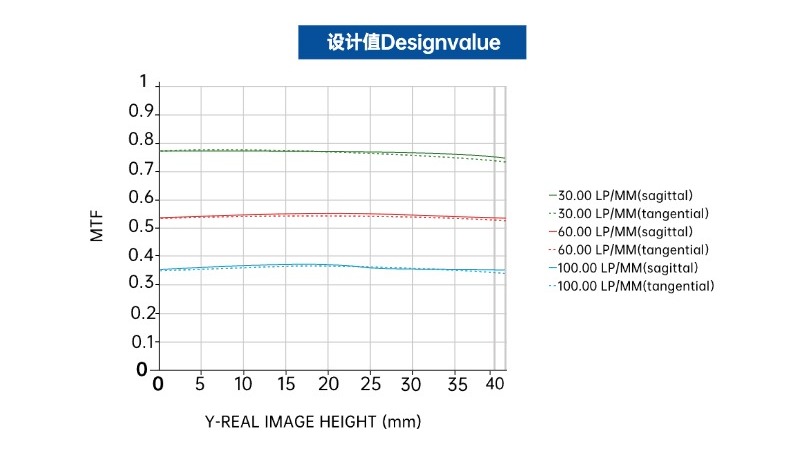

MTF vs Field

MTF vs Field- 16K 5μm Line Scan Lens

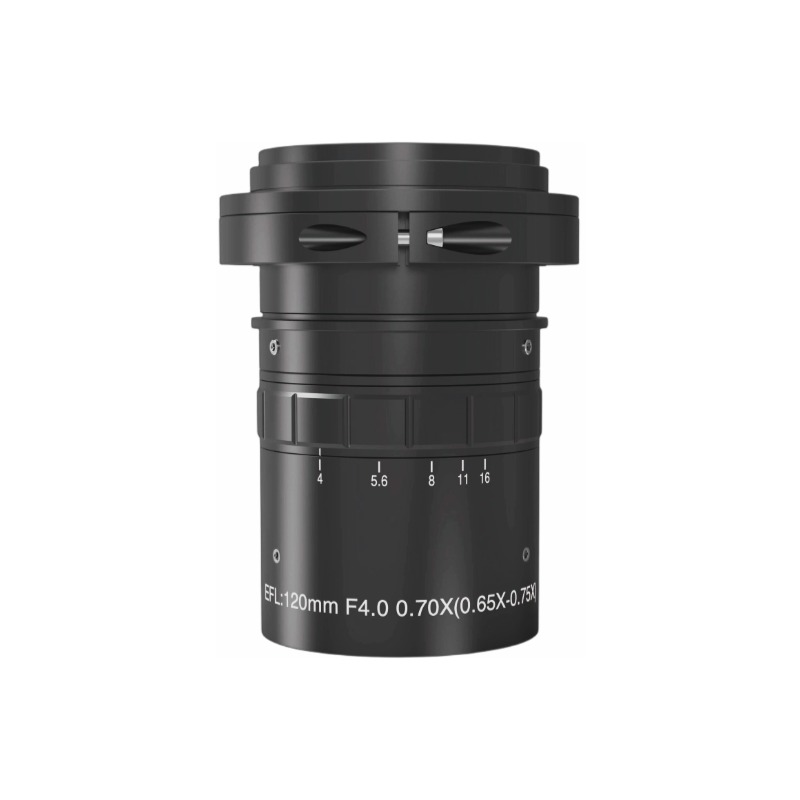

16K 5μm - LS12040A-0.7x

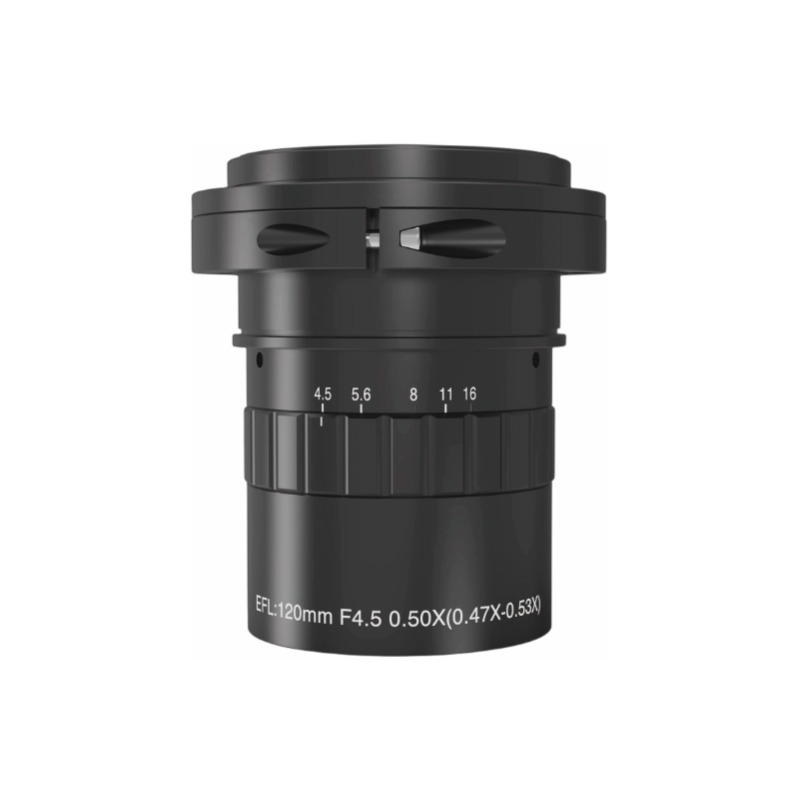

16K 5μm - LS12045A-0.5x

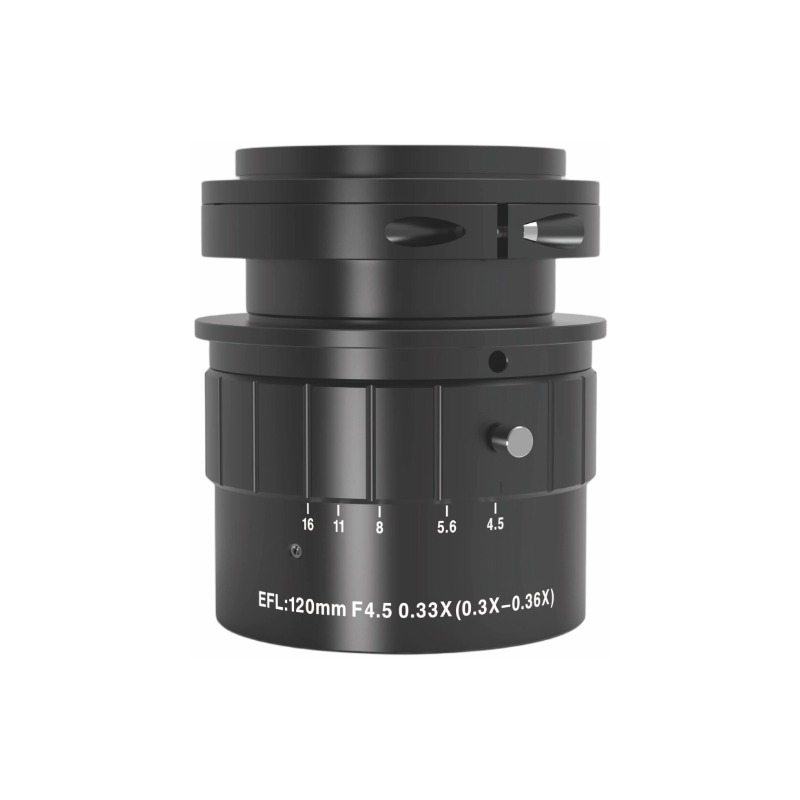

16K 5μm - LS12045A-0.33x

Hot Tags : 16K 3.5μm Line Scan Lens High-precision focusing Line Scan Lens Line Scan Lens for New displays
