Optical Glass Plano-Convex Lenses

ON-BK7 plano-convex lens
Ultraviolet fused silica plano-convex lens

Optical Glass Plano-Convex Lenses

Plano-Convex Lenses is best used where one conjugate point (object distance S or image distance S' ) is more than five times the other. This lens shape is near best-form for either focusing collimated light or for collimating a point source.

  • Payment :

    T/T Payment, Western Union

  • Shipping Port :

    Fuzhou China

  • product orgin :

    China
Inquiry Now
  • Product Details

Optical Glass Plano-Convex Lenses



Plano-Convex Lenses is best used where one conjugate point (object distance S or image distance S' ) is more than five times the other. This lens shape is near best-form for either focusing collimated light or for collimating a point source.





Material: Grade A optical glass or Fused Silica, CaF2, Silicon, Germanium
Dimension Tolerance: ±0.1mm(Standard), ±0.05mm(High Precision)
Center Thickness Tolerance: ±0.1mm(Standard), ±0.05mm(High Precision)
Paraxial Focal Length: ±2%
Surface quality: 60/40(Standard), 20/10(High Precision)
Clear Aperture: >85%
Surface Figure: λ/2(Standard), λ/4(High Precision) @633nm
Centration: 3 arc minutes
Bevel: <0.25mm×45°
Coating: Upon requirement

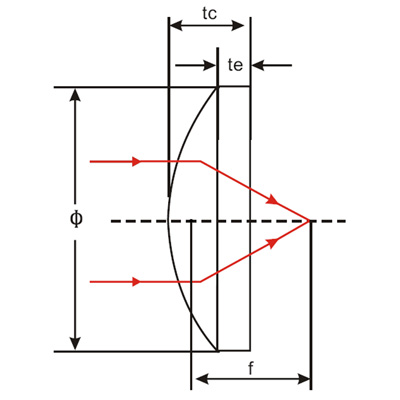

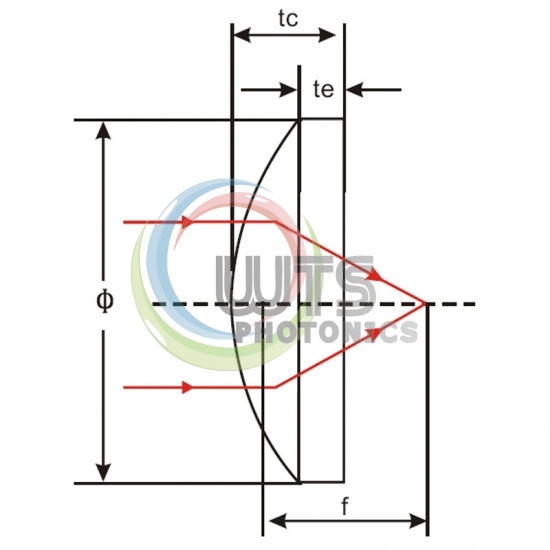

PCX Lenses



Typical Sizes
Item No. Diameter(mm) f(mm) R(mm) Tc(mm) Te(mm) Fb(mm)
Material N-BK7
PLCX001 6 12 6.22 2.27 1.5 10.5
PLCX002 6 30 15.56 1.79 1.5 28.82
PLCX101 10 15 7.78 3.8 2 12.5
PLCX102 10 22 11.4 3.1 1.9 20
PLCX103 12.7 20 10.37 3.97 1.8 17.39
PLCX104 12.7 25 12.94 3.47 1.8 22.67
PLCX105 12.7 30 15.56 3.16 1.8 27.92
PLCX106 12.7 40 20.75 2.8 1.8 38.16
PLCX107 12.7 50 25.94 2.59 1.8 48.3
PLCX108 12.7 75 38.9 2.32 1.8 73.47
PLCX109 12.7 100 51.88 2.19 1.8 98.57
PLCX201 25.4 25 13.18 11.65 2 17.74
PLCX202 25.4 30 15.56 8.57 2 24.35
PLCX203 25.4 40 20.75 6.35 2 35.82
PLCX204 25.4 50 25.94 5.32 2 46.51
PLCX205 25.4 60 31.12 4.72 2 56.89
PLCX206 25.4 75 38.9 4.13 2 72.27
PLCX207 25.4 100 51.88 3.58 2 97.66
PLCX208 25.4 125 64.86 3.27 2 122.89
PLCX209 25.4 150 77.8 3.04 2 147.98
PLCX210 25.4 175 90.78 2.89 2 173.1
PLCX211 25.4 200 103.75 2.78 2 198.18
PLCX212 25.4 300 155.6 2.52 2 298.31
PLCX213 25.4 400 207 2.39 2 397.49
PLCX214 25.4 500 259.4 2.31 2 498.56
PLCX301 30 50 25.94 7.28 2.5 45.21
PLCX302 30 75 38.9 5.51 2.5 71.36
PLCX303 30 100 51.88 4.72 2.5 96.91
PLCX304 30 150 77.8 3.96 2.5 147.38
PLCX305 38 50 25.92 11.3 3 42.6
PLCX306 38 75 38.87 8 3 69.7
PLCX307 38 100 51.83 6.6 3 95.7
PLCX308 38 150 77.75 5.3 3 146.5
PLCX309 38 200 103.66 4.8 3 196.5
PLCX310 38 350 181.41 4 3 347.4
PLCX311 38 500 259.15 3.7 3 497.6
PLCX501 50.8 100 51.88 9.64 3 93.67
PLCX502 50.8 125 64.86 8.18 3 119.65
PLCX503 50.8 150 77.8 7.26 3 145.2
PLCX504 50.8 200 103.75 6.16 3 195.96
PLCX505 50.8 500 259.4 4.25 3 497.28
PLCX506 50.8 750 389 3.83 3 747.4
Material Fused Silica
PLCX-FS01 12.7 20 9.2 4.34 1.8 17.03
PLCX-FS02 12.7 25 11.51 3.71 1.8 24.47
PLCX-FS03 12.7 30 13.8 3.35 1.8 27.71
PLCX-FS04 12.7 40 18.41 2.93 1.8 38
PLCX-FS05 12.7 50 23.01 2.69 1.8 48.17
PLCX-FS06 12.7 75 34.51 2.39 1.8 73.37
PLCX-FS07 12.7 100 46.03 2.24 1.8 98.51
PLCX-FS08 25.4 35 16.11 8.2 2 29.39
PLCX-FS09 25.4 40 18.41 7.08 2 35.16
PLCX-FS10 25.4 50 23.01 5.82 2 46.03
PLCX-FS11 25.4 75 34.51 4.42 2 71.98
PLCX-FS12 25.4 100 46.03 3.79 2 97.45
PLCX-FS13 25.4 125 57.54 3.42 2 122.72
PLCX-FS14 25.4 150 69.02 3.18 2 147.84
PLCX-FS15 25.4 175 80.54 3.01 2 173
PLCX-FS16 25.4 200 92.04 2.88 2 198.08
PLCX-FS17 25.4 250 115.08 2.7 2 248.28
PLCX-FS18 25.4 300 138.04 2.59 2 298.26
PLCX-FS19 25.4 500 230.1 2.35 2 498.52
PLCX-FS20 25.4 750 345.1 2.23 2 748.57
PLCX-FS21 25.4 1000 460.1 2.18 2 998.56
PLCX-FS22 38 75 34.51 8.7 3 69.05
PLCX-FS23 38 100 46.03 7.1 3 95.19
PLCX-FS24 38 150 69.02 5.67 3 146.14
PLCX-FS25 38 200 92.04 4.98 3 196.64
PLCX-FS26 38 250 115.08 4.58 3 247
PLCX-FS27 38 300 138.04 4.31 3 297.09
PLCX-FS28 38 500 230.1 3.79 3 497.54
PLCX-FS29 38 750 345.1 3.52 3 747.68
PLCX-FS30 38 1000 460.1 3.39 3 997.73
