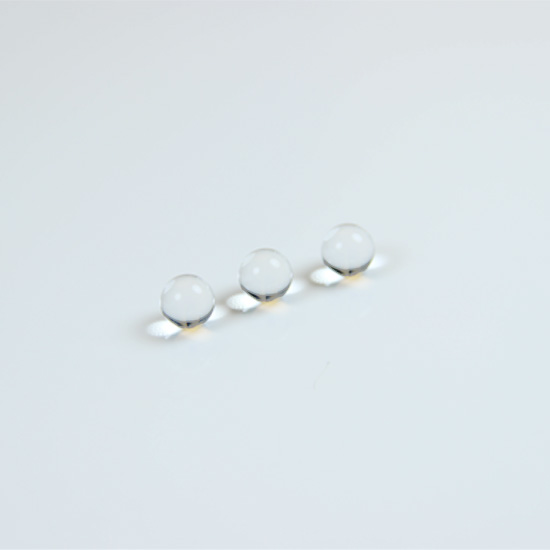

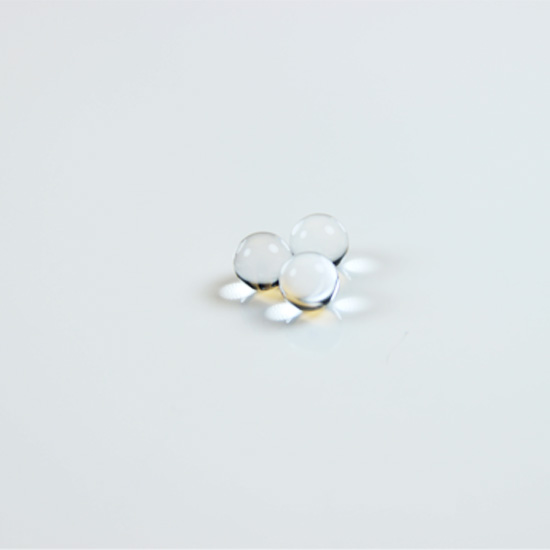

Optical Glass Ball Lenses and Half ball lenses

Optical Glass Ball Lenses and Half ball lenses
Optical Glass Ball Lenses and Half ball lenses

Optical Glass Ball Lenses and Half ball lenses

Optical glass ball lenses are commonly used

1. Laser collimating and focusing

2. Laser-to-fiber coupling

3. Fiber-to-fiber coupling

4. Fiber-to-detector coupling

  • Payment :

    T/T Payment, Western Union

  • Shipping Port :

    Fuzhou China

  • product orgin :

    China
Inquiry Now
  • Product Details

Optical Glass Ball Lenses and Half ball lenses



Ball lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. It is  used in such devices as endoscopes, microscope objectives or fiber optics couplers.

WTS experiend in manufacturing custom optical glass ball lenses, optical glass half ball lenses. We offer BK7 Ball Lenses, Fused Silica Ball Lenses, Sapphire Ball Lenses, S-LAH79 Ball Lenses etc.



Material: Grade A optical glass or Fused Silica
Dimension Tolerance:

±0.1mm(Standard), ±0.05mm(High Precision)

Surface quality:

 60/40

Clear Aperture:

 >85%
Surface figure: λ/2@633nm
Centration: 3 arc min

Note

 Diameter: available from Φ1.0mm to Φ25mm  All surfaces polished



Note for Spherical Lens:
a. Other optical glass materials from Schott, Ohara, Hoya or Chinese CDGM, UVFS from Heraeus, Corning, Germanium, Silicon, ZnSe, ZnS, CaF2, Sapphire are also available upon request .
b. Custom-made Spherical Lenses at any size from diameter 1.0 to 300mm are available upon request.

One stop service  for Vision Optics-Laser Optics-Medical Optics-5G Optical Communication-Military Optics





Sapphire Ball LensesFused Silica Ball Lenses



Hot Tags : Optical Glass Ball Lenses Optical Glass Half Ball Lenses Sapphire Ball Lenses Fused Silica Ball Lenses Fiber To Fiber Coupling Lenses Laser Collimating Lenses
