Plano-Convex Lenses is best used where one conjugate point (object distance S or image distance S' ) is more than five times the other. This lens shape is near best-form for either focusing collimated light or for collimating a point source.

High Presion Double Convex Lenses and Bi-convex Lenses

Double Convex Lenses, Bi-convex Lenses have two outward curved surfaces, a positive focal length and are useful for 1:1 imaging and in multi-element systems.These lenses are designed to have a focal length of f= (R1*R2)/((n-1)*(R2-R1)) 1. Supported by the Zemax Optical Design Package 2. Posistive Focal Length 3. Material upon requirement

Optical Glass Plano-Concave Lenses

Plano-Concave Lenses have a negative focal length and is typically used to cause a collimated beam to diverge as in a Galilean type beam expander or Telescope.1. Beam expansion2. Light projection3. Expanding an optical system’s focal length

High Presion Double Concave Lenses and Bi-concave Lenses

Double Concave Lenses, Bi-Concave Lenses is like the Plano-Concave lenses in that they are used to produce divergent light. The Bi-Concave is best used when the input beam is converging. 1. Supported by the Zemax Optical Design Package 2. Negative Focal Length 3. Material upon requirement

Precision optical glass achromatic Lenses (Doublets)

Achromatic Lenses (Doublets) VIS 0° and VIS-NIR coated achromats are also available Correct for on-axis spherical and chromatic aberrationsCustom Achromatic Lenses Available

Optical Glass Plano-Concave Cylinrical Lenses

Plaon-concave cylindrical lenses are used to provide focusing power in one section only, For illumination or detection of light from line sources.Also used for anamorphic compression of beams and images.1. Ideal for Applications Requiring Magnification in One Dimension2. Used to Transform a Collimated Beam into a Line3. Rectangular and Circular Form Factors Available

Optical precision glass aspheric lenses

Precision Aspheric Lenses Collimate or Focus Light with a Single ElementReduce spherical aberration Reduce overall system weight

Optical Glass Ball Lenses and Half ball lenses

Optical glass ball lenses are commonly used 1. Laser collimating and focusing 2. Laser-to-fiber coupling 3. Fiber-to-fiber coupling 4. Fiber-to-detector coupling

Material:	Optical glass, BK7, Fused Silica, Schott, OHARA, CaF2,Germanium etc.
Dimension Tolerance:	±0.1mm(Standard), ±0.01mm(High Precision)
Center Thickness Tolerance:	±0.1mm(Standard), ±0.02mm(High Precision)
Paraxial Focal Length:	±2%
Surface quality:	60/40(Standard), 20/10(High Precision)
Clear Aperture:	>85%
Surface Figure:	λ/2(Standard), λ/8(High Precision) @633nm
Centration:	3 arc minutes
Bevel:	<0.25mm×45°
Coating:	Upon requirement

Typical Sizes

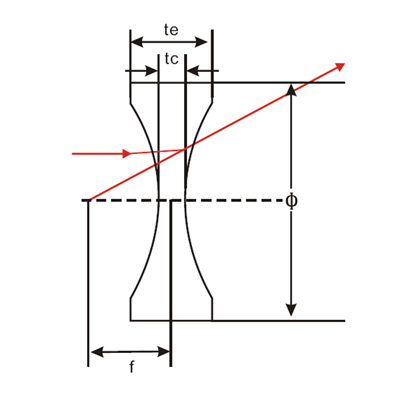

ItemNo.	Diameter(mm)	f(mm)	R2=R2(mm)	Tc(mm)	Te(mm)	Fb(mm)
Material	N-BK7
BICV001	6	-15	15.2	2.1	1.5	14.3
BICV002	6	-30	30.83	1.79	1.5	29.42
BICV101	12.7	-15	14.65	4.89	2	13.27
BICV102	12.7	-20	20.04	4.07	2	18.62
BICV103	12.7	-25	25.35	3.62	2	23.82
BICV104	12.7	-30	30.55	3.33	2	28.89
BICV105	12.7	-40	41.02	2.99	2	39.04
BICV106	12.7	-50	51.4	2.79	2	49.08
BICV107	12.7	-75	77.45	2.52	2	74.24
BICV108	12.7	-100	103.28	2.39	2	99.16
BICV201	25.4	-25	24.72	9.02	2	22.24
BICV202	25.4	-31.7	31.55	7.34	2	29.15
BICV203	25.4	-35	35.08	6.76	2	32.66
BICV204	25.4	-50	50.93	5.22	2	48.22
BICV205	25.4	-75	77.09	4.11	2	73.63
BICV206	25.4	-100	103.04	3.57	2	98.73
BICV207	25.4	-125	129.12	3.25	2	123.92
BICV208	25.4	-150	155.1	3.04	2	149
BICV209	25.4	-175	181.13	2.89	2	174.12
BICV210	25.4	-200	207	2.78	2	199.07
BICV211	25.4	-250	258.9	2.62	2	249.12
BICV212	25.4	-300	310.8	2.52	2	299.17
BICV213	25.4	-500	518.3	2.31	2	499.21
BICV214	25.4	-1000	1037.1	2.16	2	999.32
BICV301	38	-45	44.87	10.44	2	41.46
BICV302	38	-50	49.97	10.5	3	46.4
BICV303	38	-100	102.57	6.55	3	97.78
BICV304	38	-150	154.7	5.34	3	148.23
BICV305	38	-200	206.7	4.75	3	198.46
BICV306	38	-350	362.4	4	3	348.66
BICV307	38	-500	518.1	3.7	3	498.79
BICV308	38	-700	725.6	3.5	3	698.84
BICV401	40	-63.5	64.42	8.27	1.9	60.7
BICV501	50	-100	102.06	9.2	3	96.9
BICV502	50	-150	154.27	7.1	3	147.6
BICV503	50	-200	206.28	6	3	198
BICV504	50	-250	258.22	5.4	3	248.2
BICV505	50	-400	413.87	4.5	3	398.5
BICV506	50	-450	465.73	4.3	3	448.6
BICV507	50	-500	517.58	4.2	3	448.6
BICV508	50	-600	621.28	4	3	598.7
BICV509	50	-800	828.64	3.8	3	798.7
Material	Fused Silica
BICV-FS01	6	-15	14.03	1.5	2.15	15.5
BICV-FS02	6	-30	27.84	1.5	1.82	30.51
BICV-FS03	12.7	-15	14.11	2	5.02	15.67
BICV-FS04	12.7	-20	18.71	2	4.22	20.67
BICV-FS05	12.7	-25	23.32	2	3.76	25.68
BICV-FS06	12.7	-30	27.92	2	3.46	30.68
BICV-FS07	12.7	-40	37.12	2	3.09	40.68
BICV-FS08	25.4	-25	23.32	2	9.52	25.68
BICV-FS09	25.4	-35	32.52	2	7.17	35.68
BICV-FS10	25.4	-50	46.32	2	5.55	50.68
BICV-FS11	25.4	-75	69.33	2	4.35	75.69
BICV-FS12	25.4	-100	92.33	2	3.76	100.68
BICV-FS13	25.4	-150	138.34	2	3.17	150.68
BICV-FS14	25.4	-200	184.35	2	2.88	200.69
BICV-FS15	25.4	-250	230.36	2	2.7	250.69
BICV-FS16	25.4	-300	276.36	2	2.58	300.68
BICV-FS17	25.4	-500	460.4	2	2.35	500.69
BICV-FS18	25.4	-1000	920.48	2	2.18	1000.69
BICV-FS19	38	-50	46.48	3	11.12	51.02
BICV-FS20	38	-100	92.49	3	6.95	101.03
BICV-FS21	38	-150	138.5	3	5.62	151.03
BICV-FS22	38	-200	184.5	3	4.96	201.02
BICV-FS23	38	-350	322.53	3	4.13	351.03
BICV-FS24	38	-500	460.55	3	3.78	501.02
BICV-FS25	38	-750	690.59	3	3.52	751.02
BICV-FS26	38	-1000	920.64	3	3.39	1001.04
PLCX-FS27	38	300	138.04	4.31	3	297.09
PLCX-FS28	38	500	230.1	3.79	3	497.54
PLCX-FS29	38	750	345.1	3.52	3	747.68
PLCX-FS30	38	1000	460.1	3.39	3	997.73
