Home Optical Prisms

Homogenizing Rods Tower Prism and Light Pipe and IPL Light Guide

Micro-light-averaging Rod Tower Prism

Homogenizing Rods Tower Prism and Light Pipe and IPL Light Guide

The light-homogenizing rod tower prism can change the direction and state of light propagation, and is widely used in optical instruments to achieve functions such as beam steering and light splitting;

the light guide can collect and transmit natural light to the room for lighting, and is composed of a lighting, light guiding, and diffusion system;

the IPL in the IPL light guide is intense pulsed light, which is focused and filtered to form a broad spectrum of light. It is often used in the field of medical beauty for skin rejuvenation, hair removal, etc., using specific wavelengths to act on the skin to achieve the corresponding effects.

  • Payment :

    T/T Payment, Western Union

  • Shipping Port :

    Fuzhou China

  • product orgin :

    China
Inquiry Now
  • Product Details

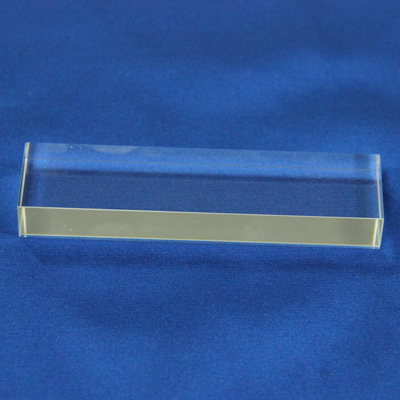

Homogenizing Rods Tower Prism and Light Pipe and IPL Light Guide



Light Pipes also known as Homogenizing Rods, are Optical Components designed for any application that requires homogenized light.



Product Overview：Tower prism is a special optical element in a tower - like shape, changing optical path and beam shape through refraction and reflection.​



WTS offer customized Tower Prism, Light Pipe, Homogenizing Rods, IPL Light Guide etc products.Different size, coating requirement are available



Specifications:
Material: N-BK7; UV Fused Silica; other optical glass
Dimension Tolerance: +0.0, -0.2mm
Surface quality: 60-40 S/D
Surface flatness: λ/2 @ 632.8nm
Angle Tolerance: ±3 arc min
Clear Aperture: >85% of dimension
Bevel: <0.25mm×45
Coating: Dielectric Coated, AR coated, HR coated, Ag, Au, Al coated etc.

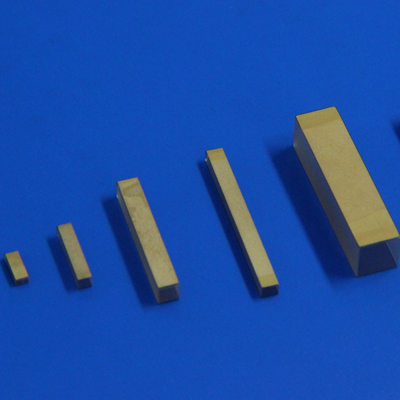

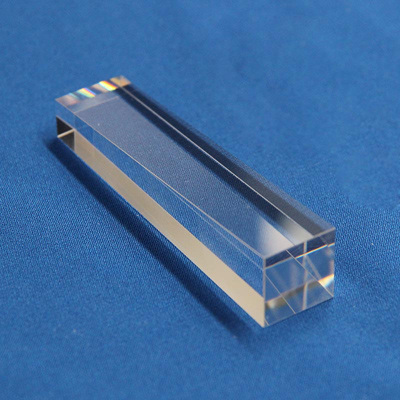

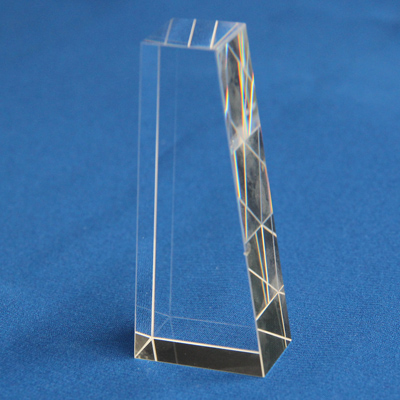

Tapered Light PipeGlass Tarped PrismsHomogenizing RodsIPL Light Guide



Application：

Optical imaging systems: such as telescopes and microscopes, which can realize beam steering, beam splitting and imaging direction adjustment; they are also used in laser processing equipment to accurately control the propagation path and angle of the laser beam to achieve high-precision processing.

Light guide: Mainly used in the field of building lighting, providing lighting for basements, windowless rooms, etc., reducing energy consumption of artificial lighting; it can also be used in some special places with high requirements for light uniformity.

IPL light guide: widely used in the field of medical cosmetology, using the effect of intense pulsed light on skin tissue to improve skin problems; also used as an auxiliary treatment for dermatological diseases, regulating the physiological functions of the skin through light of specific wavelengths.
