Rod Lens

LOADING IMAGES

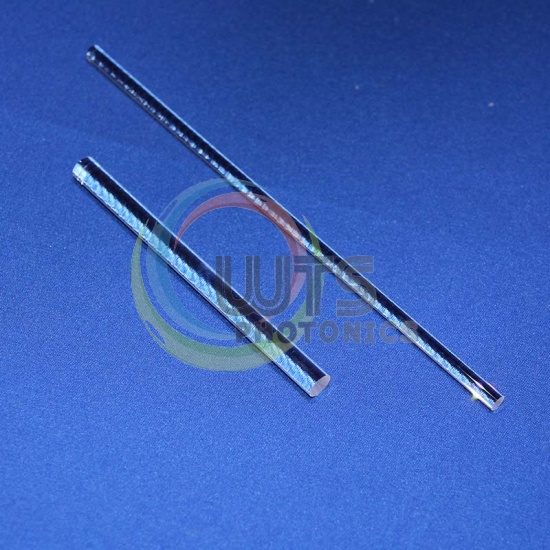

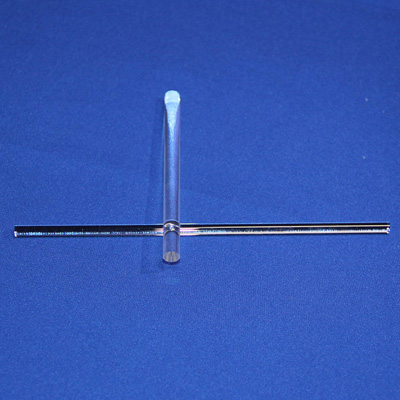

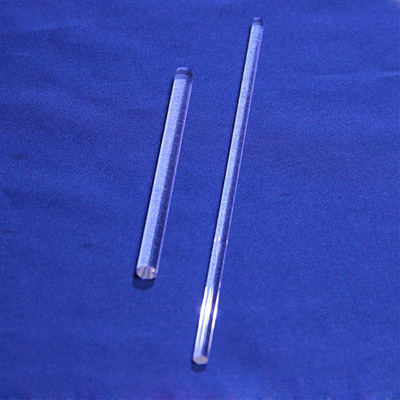

Rods Lenses and Light pipes

Rod lenses Light pipes is used in the fields of medical, electronic, information, agriculture, communication and etc.
1.All surfaces (end-faces and cylinder)polished;
2.Only end-faces polished;
3.Only Cylinder polished.
  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

Rods Lenses and Light pipes


Rod lenses Light pipes is used in the fields of medical, electronic, information, agriculture, communication and etc.


Material:
Grade A optical glass or Fused Silica
Dimension Tolerance:
±0.05mm to ±0.005mm
Surface quality:
20/10 to 40/20
Clear Aperture:
>85%
Surface Figure:
λ/4 to 2λ@633nm
Centration:
3 arc minutes
Note:
Diameter: available from Φ1.0mm to Φ25mm
1.All surfaces (end-faces and cylinder)polished;
2.Only end-faces polished;
3.Only Cylinder polished.


Rod LensesLight Pipe


Note for Spherical Lens:
a. Other optical glass materials from Schott, Ohara, Hoya or Chinese CDGM, UVFS from Heraeus, Corning, Germanium, Silicon, ZnSe, ZnS, CaF2, Sapphire are also available upon request .
b. Custom-made Spherical Lenses at any size from diameter 1.0 to 300mm are available upon request.
