Color Glass Filters

LOADING IMAGES

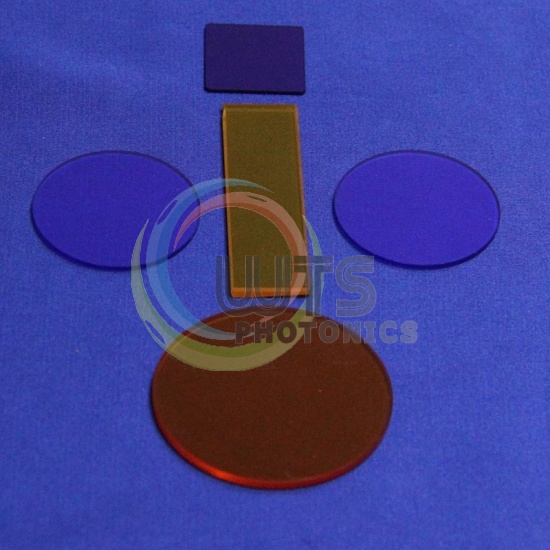

Selective Absorption Colored Glass Filters

Selective Absorption Colored Glass Filters
This part of the glasses can be divided into 14 kinds and 78 types based on the color and application in this catalogue.


  • product orgin:

    China
  • shipping port:

    Fuzhou China
  • payment:

    T/T Payment, Western Union
inquiry now
features

Selective Absorption Colored Glass Filters


Selective Absorption Colored Glass Filters can be divided into 14 kinds and 78 types based on the color and application in this catalogue. The types are arranged in accordance with serial numbers, which have no special meaning.


Their main application are as below:

1. Environmental displays
2. Optical metrological instruments
3. Laser protective windows
4. Machine vision devices
5. Optical detection instruments
6. Optical test instruments
7. Electro-optic displays
8. Medical optical
9. Infrared thermograph



WTS SCHOTT HOYA WTS SCHOTT HOYA WTS SCHOTT HOYA
ZWB1 UG11 U-340 QB29 BG25 B-380 HB3 RG6
ZWB2 UG1 U-360 LB1 VG9 HB5
ZWB3 UG5 U-330 LB2 VG11 HB6
ZB1 B-390 LB3 HWB1 RM-86
ZB2 BG3 LB4 HWB3 RG7 RM-90
ZB3 B-370 LB6 HWB4
QB1 LB7 VG8 G-533 FB1
QB2 B-410 LB8 FB3
QB3 LB9 VG10 GRB1 KG2 HA-50
QB4 LB10 G-550 GRB3 KG3 HA-30
QB5 B-440 LB11 PNB586 BG20 V-10
QB9 LB12 HOB445 HY1
QB10 LB13 G-545 TB1 SL-1A
QB11 BG14 LB14 TB2 L-1B
QB12 B-460 LB15 SSB40 FG6 LB-40
QB13 LB16 SSB145 BG34 LB-145
QB16 LB17 VG5 SSB165 FG3 LB-165
QB17 LB18 VG6 SSB200 LB-200
QB18 LB19 SJB20 FG18 LA-20
QB19 JB1 GG19 SJB80 FG16 LA-80
QB21 BG38 JB9 GG10 SJB100 LA-100
QB23 BG7 B-480 CB1 SJB130 FG15 LA-120
QB24 BG12 CB2 SJB140 LA-140
QB26 BG18 HB1


Specifications:

Material: Color glass
Dimension Tolerance: +0.0, -0.2mm
Thickness Tolerance: +/-0.2mm
Surface quality: 80/50
Clear Aperture: >85%
Flatness: 1 λ per 25mm@633nm
Parallelism: <3'
Bevel: <0.25mmx45°
Coating: Upon requirement

Typical Sizes:
Size(mm) Size(mm)
Φ5.0x1.0 Φ20.0x3.0
Φ10.0x2.0 Φ25.4x3.0
Φ12.7x2.0 Φ50.8x3.0
Φ15.0x3.0 Φ76.2x5.0
