Glued Prisms and Special Customized Prisms

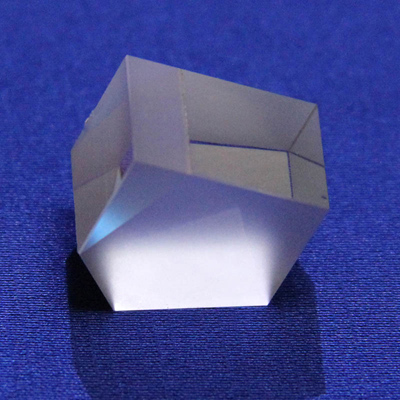

High Precision Glued Beamsplitter Prism Set

Glued Prisms and Special Customized Prisms

Glued prisms are made of multiple prisms bonded together through a specific process. They can perform complex optical functions in a small space, changing the direction of light propagation or carrying out other optical operations.



Special customized prisms are built to meet each customer’s unique requirements, and can be tailored in optical performance, dimensions, and structural design. Whether it is special angle requirements, specific materials, or complex optical path planning, all can be precisely accommodated.









  • Payment :

    T/T Payment

  • Product Origin :

    China

  • Shipping Port :

    Fuzhou, China
Inquiry Now
  • Product Details

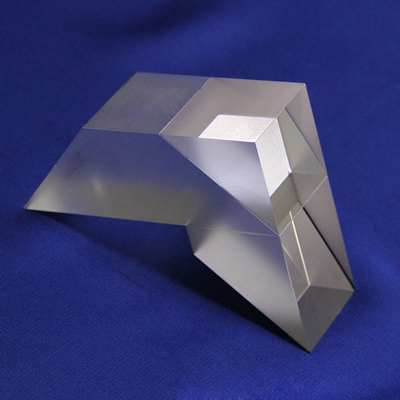

Glued Prisms and Special Customized Prisms

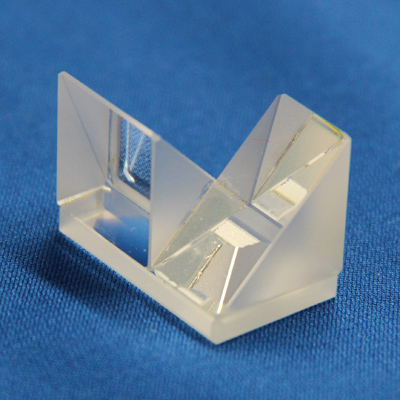

Glued prisms are assembled from prisms of different shapes.

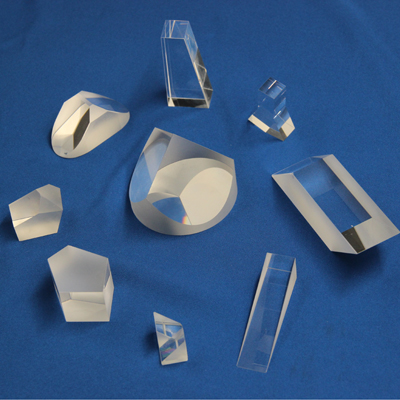

WTS also makes customized special prisms, such as half-penta prisms, Pellin-Broca prisms, and Pechan prisms. Provide us with your drawing and WTS will handle the rest.



Specifications:
Material: N-BK7; UV Fused Silica; other optical glass
Dimension Tolerance: +0.0 / -0.2 mm
Surface Quality: 60-40 S/D
Flatness: λ/2 @ 632.8 nm
Angle Tolerance: ±3 arcmin or upon request
Clear Aperture: >85%
Bevel: <0.25 mm×45°
Coating: Upon request





Application：



Glued prism

1.Optical imaging: in cameras, telescopes, microscopes, and other equipment, glued prisms are used to redirect, refract, and image light to improve image quality and clarity.

2.Laser technology: precisely adjusts the angle and combines laser beams to ensure the accuracy and stability of the laser during transmission and use.



Specially customized prisms

1.Scientific research: prisms customized according to specific experimental needs can accurately control the propagation path and characteristics of light to meet the strict optical requirements of the experiment.

2.Medical: in some high-end medical imaging equipment, they help optimize the optical path system, improve image resolution and quality, and provide a more accurate basis for disease diagnosis.



Glued PrismsPellin-Broca PrismsAssembled PrismsGlass Prisms









Hot Tags : Optical Glued Prisms Half Penta Prism Pellin-Broca Prisms Optical Assembled Prisms Glass Pechan Prisms Optical Glass Prisms
